PNEUMATICO WT-2 Pallet Repair Table

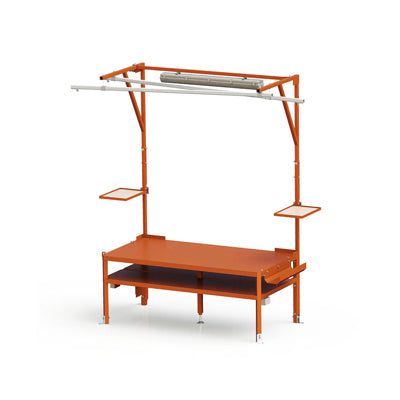

The PNEUMATICO work table, model WT-2, is designed to provide a durable and ergonomic work surface for pallet repair stations. Pneumatico manufactures two table models - WT-1 and WT-2.

The PNEUMATICO pallet repair table, model WT-2, is a specialized model for EPAL / EURO type pallet repairs. The table is equipped with a work surface measuring 1350 x 1430 mm. During the design process, significant attention was given to discussions with companies in the pallet repair industry, which highlighted the table elements that are important from the user’s perspective. Therefore, the Pneumatico WT-2 pallet repair table is equipped with a pneumatic pallet lift. By pressing the pneumatic foot pedal, the pallet is raised by several centimeters, allowing the pallet being repaired to be easily rotated 360 degrees, minimizing the operator's workload. Another important design element is the "basket" for vertical rotation of the pallet. This is the most energy-intensive aspect of pallet repair. Pallet repair technicians unanimously noted that this element is highly functional and directly impacts productivity.

• Work table WT-2
• Rail system: 2 pcs. rails + 2 pcs. sliders + 4 pcs. guards
• Reducers - 2 pcs. - OR-1/4MINI
• Work surface LED lighting - 1 pcs.
• Output box - 1 pcs.
• Double electrical outlet - 2 pcs.
• Pneumax FRL components, air pressure filter/regulator, lubricator
• CE declaration

ADVANTAGES:

• The corners of the work surface are rounded with a 45-degree angle - reducing the risk of knife damage.
• Safe electrical installation internally located within the table profiles.
• Low energy consumption due to LED lighting.
• Transport roller for easy insertion and removal of pallets from the table surface.
• Side shelf for the saw.
• Adjustable shelf/roller position to the left and right of the table.
• Robust 6 mm thick steel plate for vibration and noise reduction.
• Special version - pneumatic pallet lifting.
• Special version - bearing for vertical rotation.
• Specially designed rail system - automatic nail gun return.
• Sloped rails for free movement of the nail gun outside the table work area.
• Pallet locking while cutting parts with a saw.
• Adjustable foot pedal position - closer - further away.
