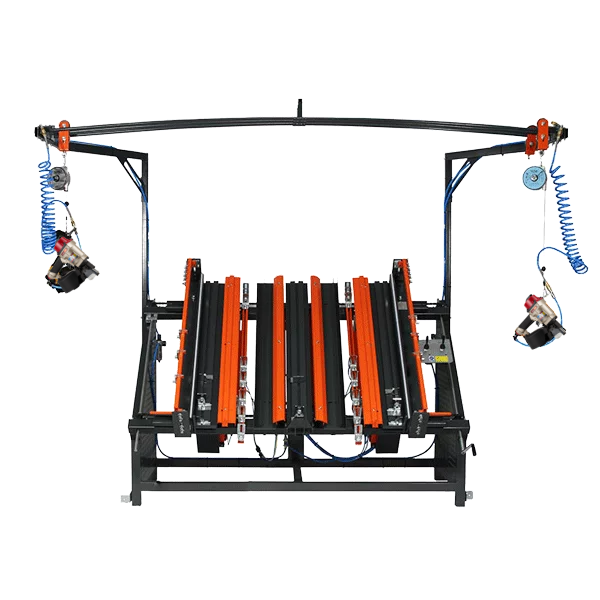

PNEUMATICO WT-1 Pallet Repair Table

The PNEUMATICO WT-1 pallet repair table is designed to provide a durable and ergonomic workspace for pallet repair stations. The company manufactures two table models - WT-1 and WT-2.

The WT-1 model features a tabletop with dimensions of 1994 x 1040 mm. It is equipped with electrical installations (2 x double sockets), LED lighting for the work surface, 2 upper rails, and a compressed air system with two filters and control blocks with lubricators. The operator can set the desired working pressure for each of the two nail guns using FRL components.

Included in the Price:

• WT-1 Work Table
• Rail System: 2 pcs. rails + 2 pcs. wheels + 4 pcs. dampers
• Reducers - 2 pcs. - OR-1/4MINI
• LED Lighting for Work Surface - 1 pc.
• Distribution Box - 1 pc.
• Double Power Sockets - 2 pcs.

ADVANTAGES

• The corners of the work surface are rounded at a 45-degree angle - this reduces the risk of blade damage.

• Safe electrical installation located within the table profiles.
• Low energy consumption due to LED lighting.
• Transport roller for easy pallet placement and removal from the table surface.
• Side shelf for electric saws.
• Replaceable shelf/wheels on the left and right sides of the table.
• Robust 6 mm thick steel plate to reduce vibrations and noise.
• Specially designed table legs for reduced noise and cushioning when cutting pallets and driving nails.
• Custom-designed rail system - automatic return of nail guns.
• Rail installation angle that ensures free movement of nail guns outside the table's work area.

TECHNICAL SPECIFICATION

• Weight: 260 kg

• Operating Pressure: up to 8 bar.
• Material: Structural Steel.

External Dimensions:

• Width: 1994 mm
• Table Height, including Balancer Installation System: 2846 mm
• Work Surface Height: 800 mm
