ETB160-B - Hidden Beam Connection

Name: ETB160-B - Hidden Beam Connection
Brand: Simpson Strong-Tie
SKU: ETB160-B
Availability: OutOfStock

Shipping calculated at checkout.

Availability: Out of stock

SKU: ETB160-B

Collections:

Concealed Beam Connectors,
Simpson Strong-Tie

Simpson Strong-TieETB190-B - Hidden Beam Joint

Simpson Strong-TieETB120-B - Hidden Beam Connection

Description

Specifications

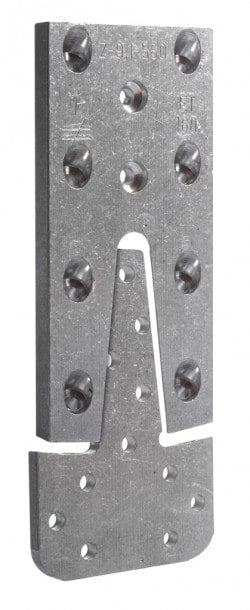

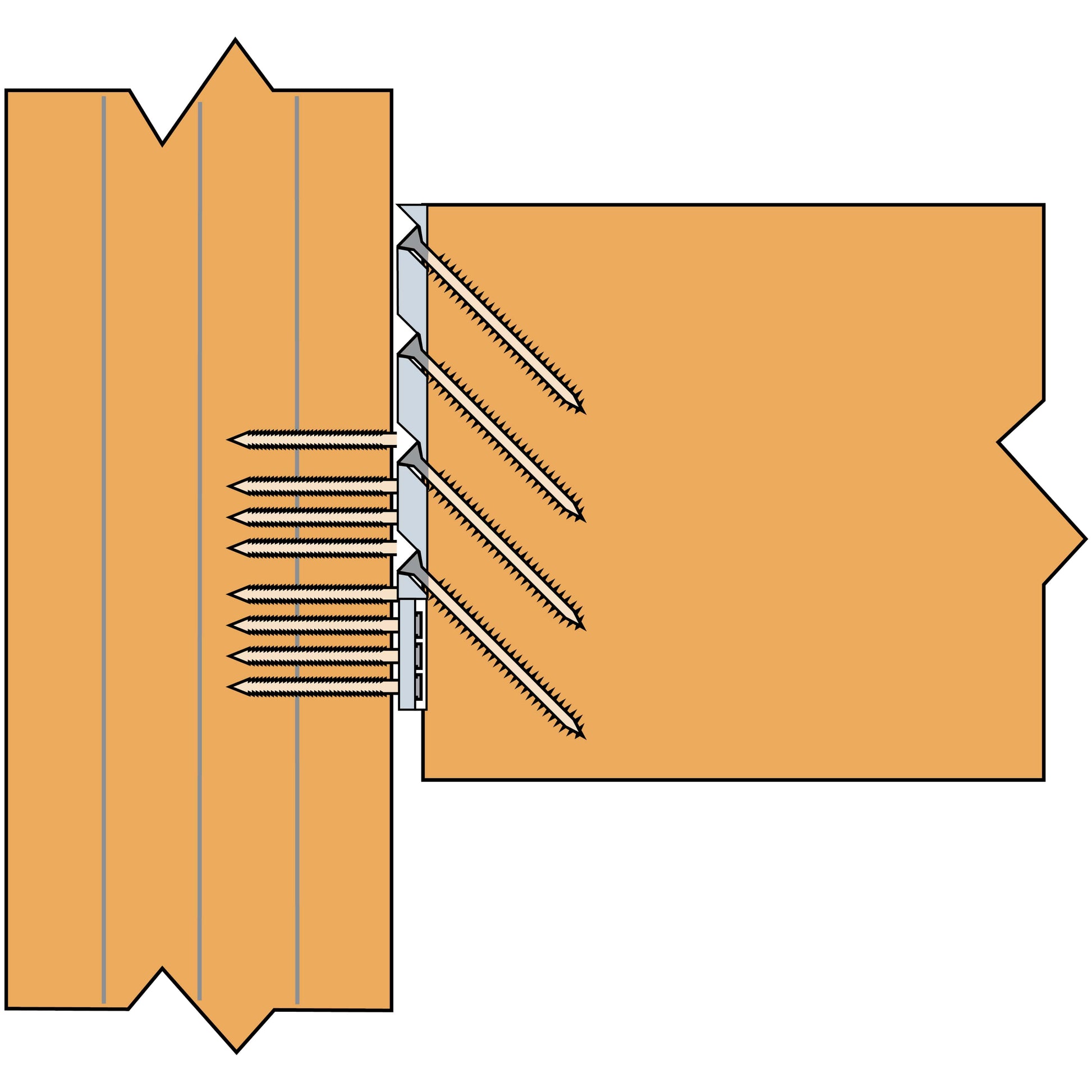

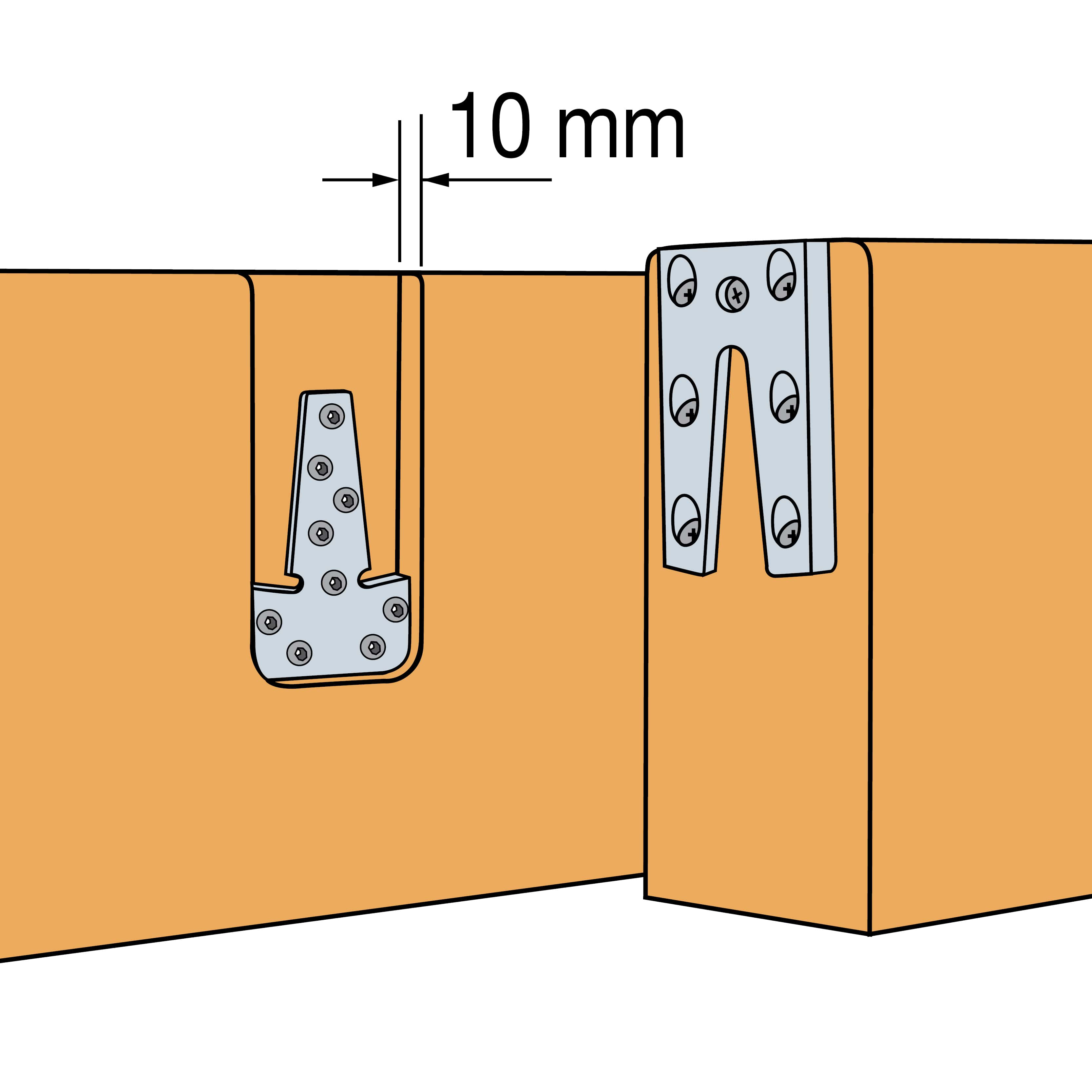

The concealed ETB joint consists of two parts. The first part is inserted into the main structure and secured with screws, while the second part is attached to the end of the beam with bolts.

Brand

Simpson strong-tie

Type

Concealed beam connector

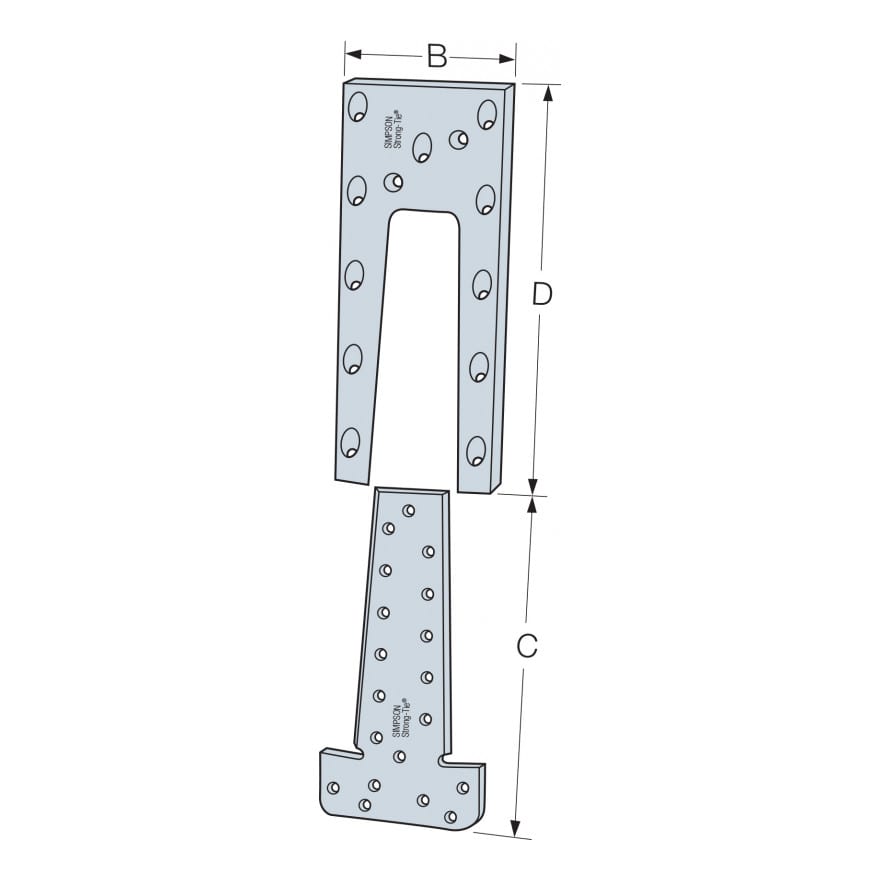

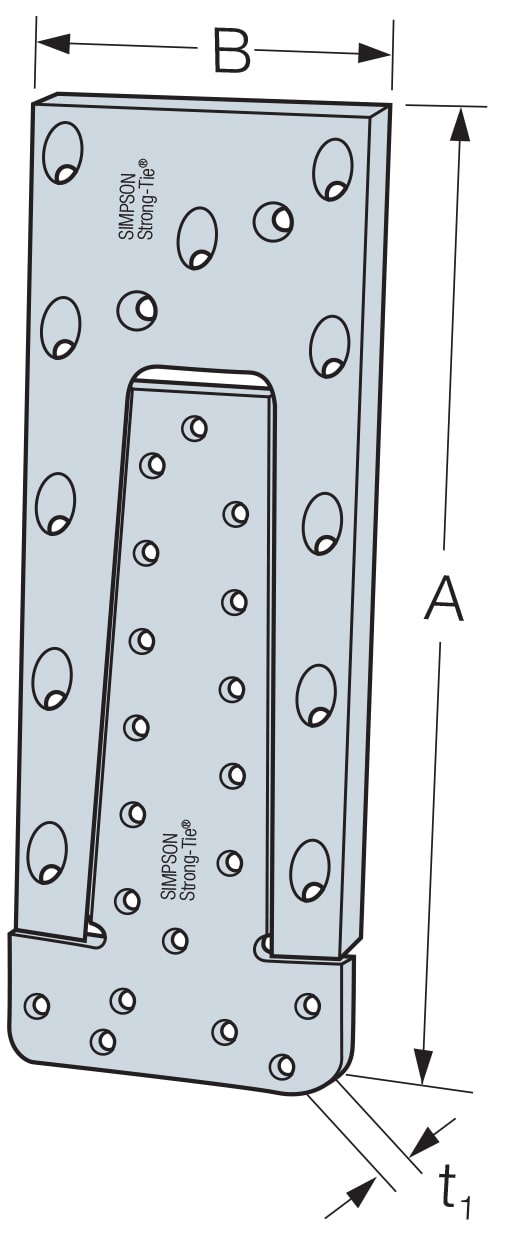

Dimension-a

166 mm

Dimension-b

60 mm

Dimension-c

95 mm

Dimension-d

130 mm

Material

aluminium

Thickness-t1

6 mm

Thickness-t2

10 mm
