ETB120-B - Hidden Beam Connection

Name: ETB120-B - Hidden Beam Connection
Brand: Simpson Strong-Tie
SKU: ETB120-B
Availability: OutOfStock

Shipping calculated at checkout.

Availability: Out of stock

SKU: ETB120-B

Collections:

Concealed Beam Connectors,
Simpson Strong-Tie

Simpson Strong-TieETB160-B - Hidden Beam Connection

Simpson Strong-TieGAR27/40/25 - Rodent Tape (27mm x 40mm) (25m)

Description

Specifications

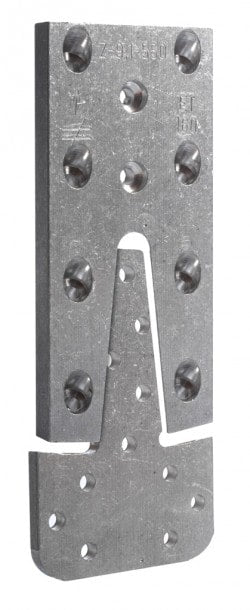

The hidden ETB connector consists of two parts. The first part is inserted into the main structure and secured with screws, while the second part is attached to the end of the beam with bolts.

Brand

Simpson strong-tie

Type

Concealed beam connector

Dimension-a

121 mm

Dimension-b

60 mm

Dimension-c

85 mm

Dimension-d

95 mm

Material

aluminum

Thickness-t1

6 mm

Thickness-t2

10 mm
