Walcom EGO Carbonio HVLP 1.4 Spray Gun with 1.4mm Nozzle

Ego Carbonio 190, ideally suited for finishing coat applications and graphic work.

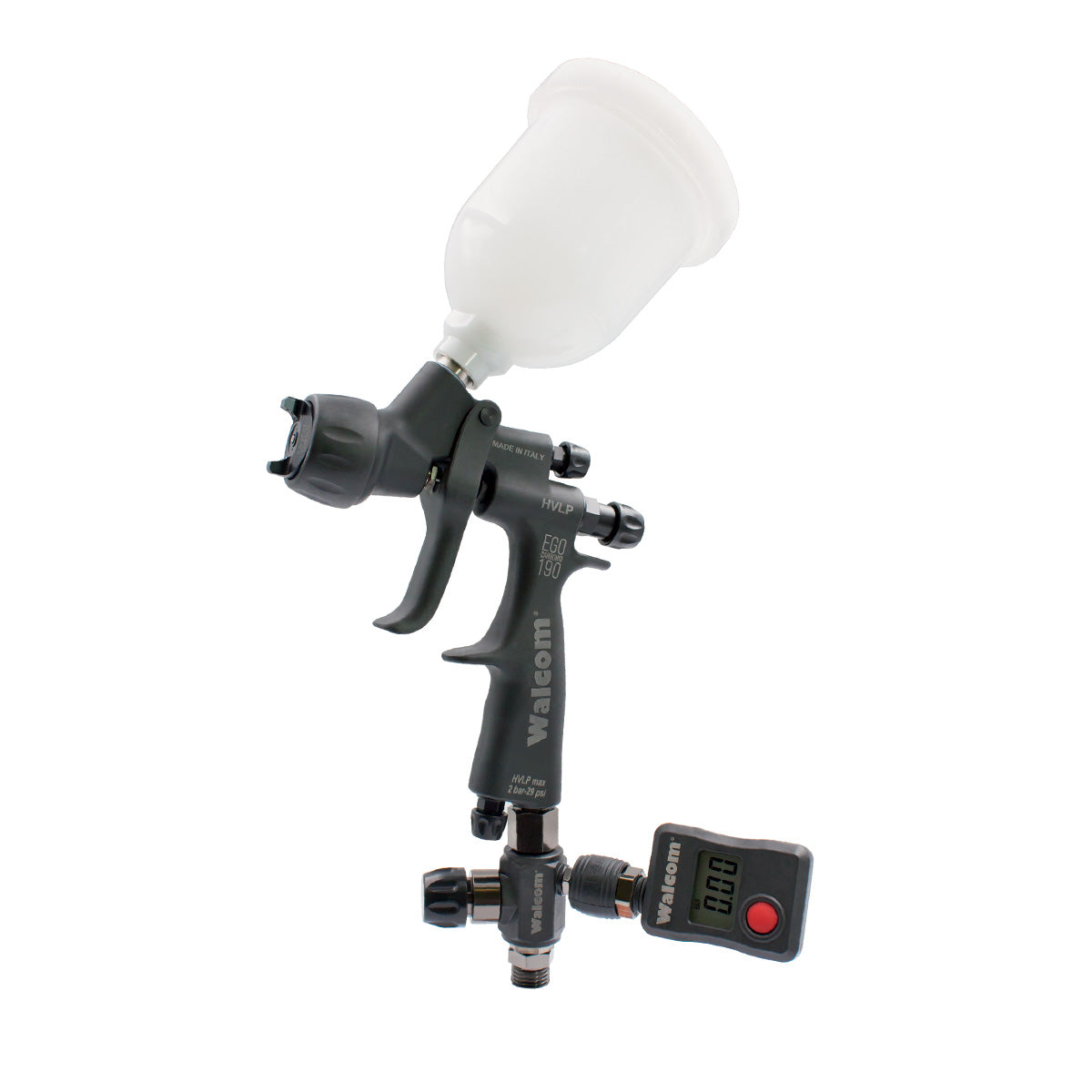

New technologies and years of accumulated knowledge are represented in the EGO spray gun, designed for refinishing and smart repair in body shops. This is the EGO CARBONIO, featuring a forged aluminum core and an injection-molded carbon fiber body. Attention to detail, lightweight design, ease of use, and, most importantly, outstanding performance make the EGO CARBONIO stand out with its unique characteristics:

• weight, only 190 grams

• performance, thanks to high-precision components processed with 5-axis CNC machining
• atomization with the new anodized "corrosion-resistant" aluminum cap, specifically designed for targeted, fine, and precise applications
• durability achieved through a combination of materials such as stainless steel, aluminum, brass, and carbon fiber, treated with nanotechnology processes for easier cleaning and reliable resistance to chemical aggression. The EGO CARBONIO is the most advanced from a design and manufacturing perspective, while also being easier and more practical for the painter to use. A unique spray gun capable of handling a wide range of applications according to the Walcom® philosophy, which is based on innovation and technology.

Available nozzle sizes: 0.5 - 0.7 - 1.0 - 1.2 - 1.4 mm

Specifications

• Reference: 713014
• Tank: POM C 75 - 180 cc/aluminum 125 cc

• Body: forged aluminum and carbon fiber

• Trigger material: carbon fiber

• Air cap: anodized aluminum

• Nozzle: stainless steel AISI 303

• Needle-spring: inox AISI 303

• Seals: self-lubricating and adjustable PTFE (Teflon)

• Weight: 190 g

• Operating pressure: 0.5 - 2.0 bar

• Air consumption: 145 l/min

• Compatible nozzle diameters: 0.5 - 0.7 - 1.0 - 1.2 - 1.4

• Attach the nozzle diameter for reference. (**). Digital manometer and air control regulator with a quick connection system, made from carbon fiber. Swivel mount

Product description on the manufacturer's website:  Ego Carbonio 190 | Walmec S.p.A.
