Lamello Cabineo X Furniture Connectors (White; 500 pcs.)

Universal connectors for frame constructions and adjustable shelves.

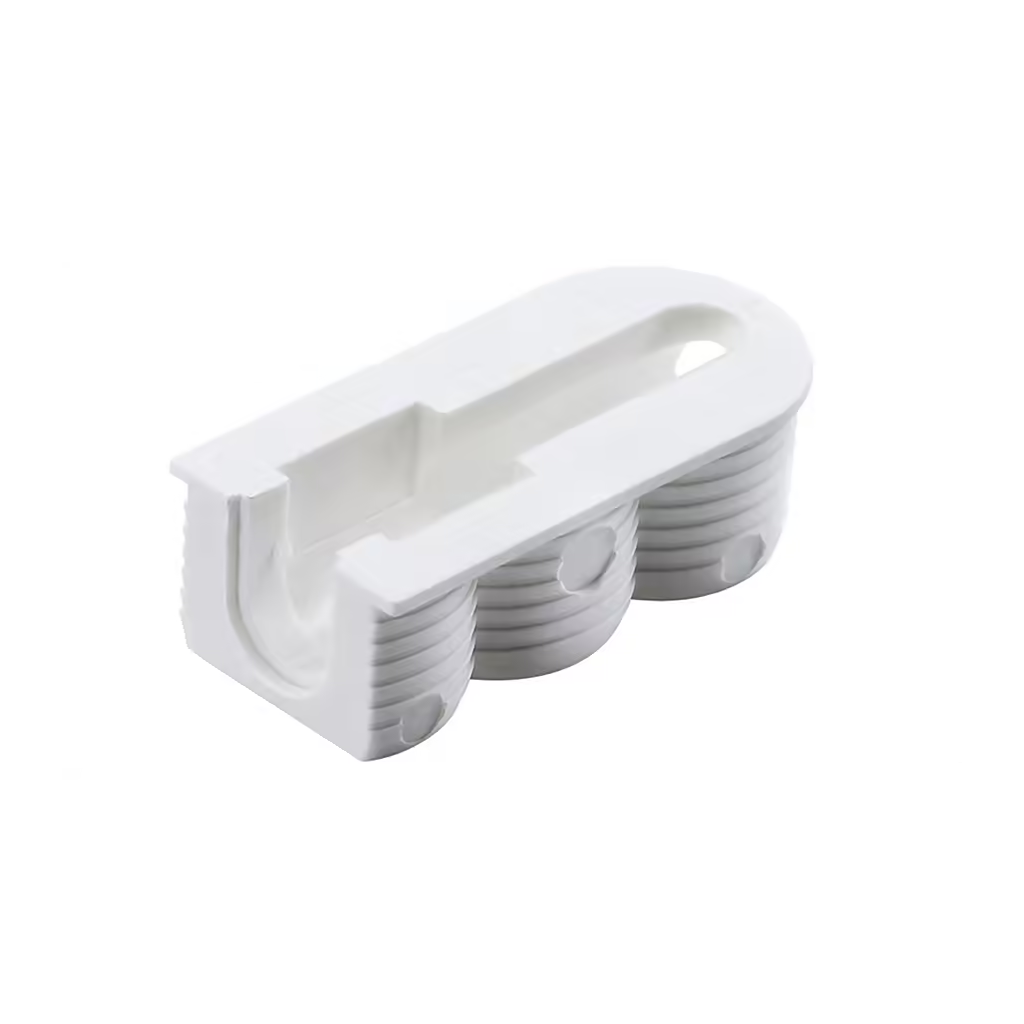

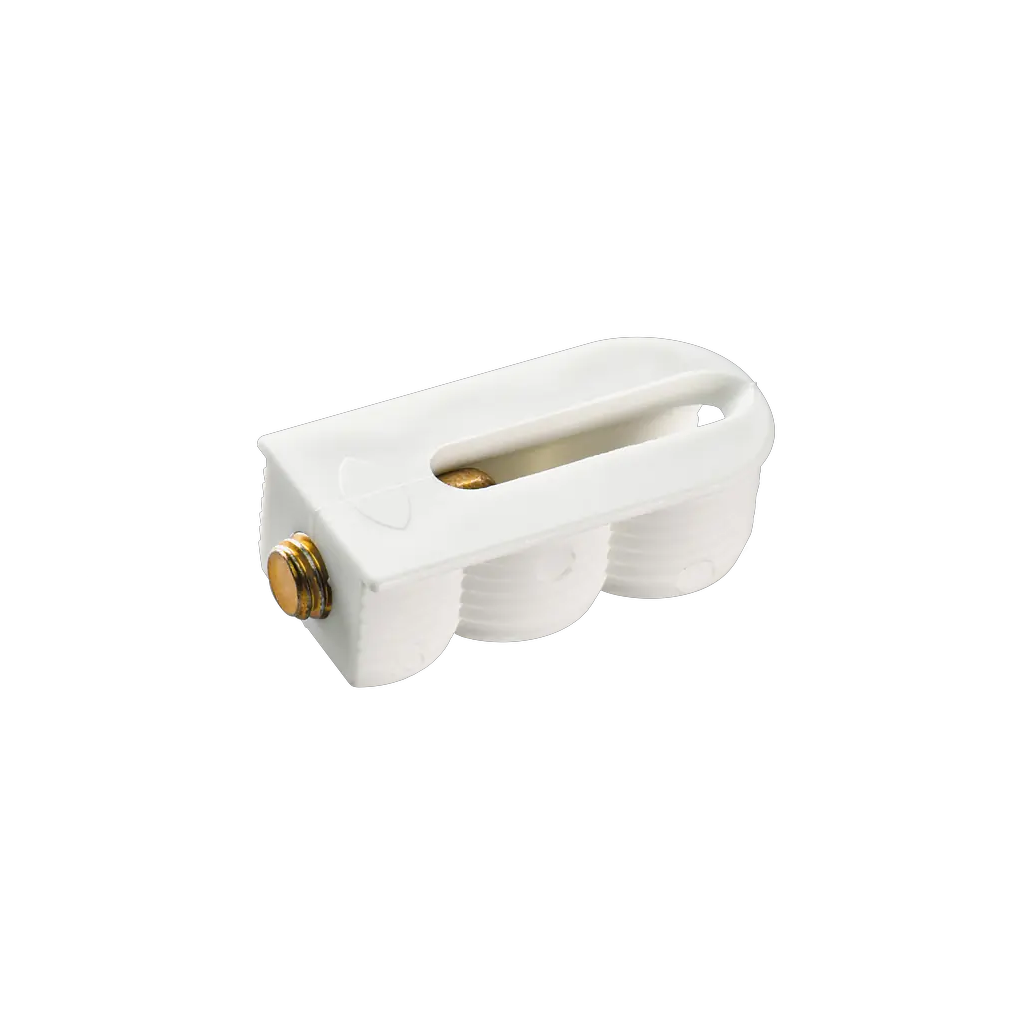

Cabineo X is an innovative one-piece furniture connector with an open design, intended for connecting furniture frames and securing shelves. Its design allows for surface routing only, eliminating the need for edge drilling, which significantly reduces processing time and enhances installation efficiency.

Cabineo X can be used with various types of screws or shelf supports, ensuring flexible application depending on the use case. It is ideally suited for shelves, cabinets, accessible cladding doors, or constructions for boats, campers, and public furniture where high securing safety is required.

Main Advantages:

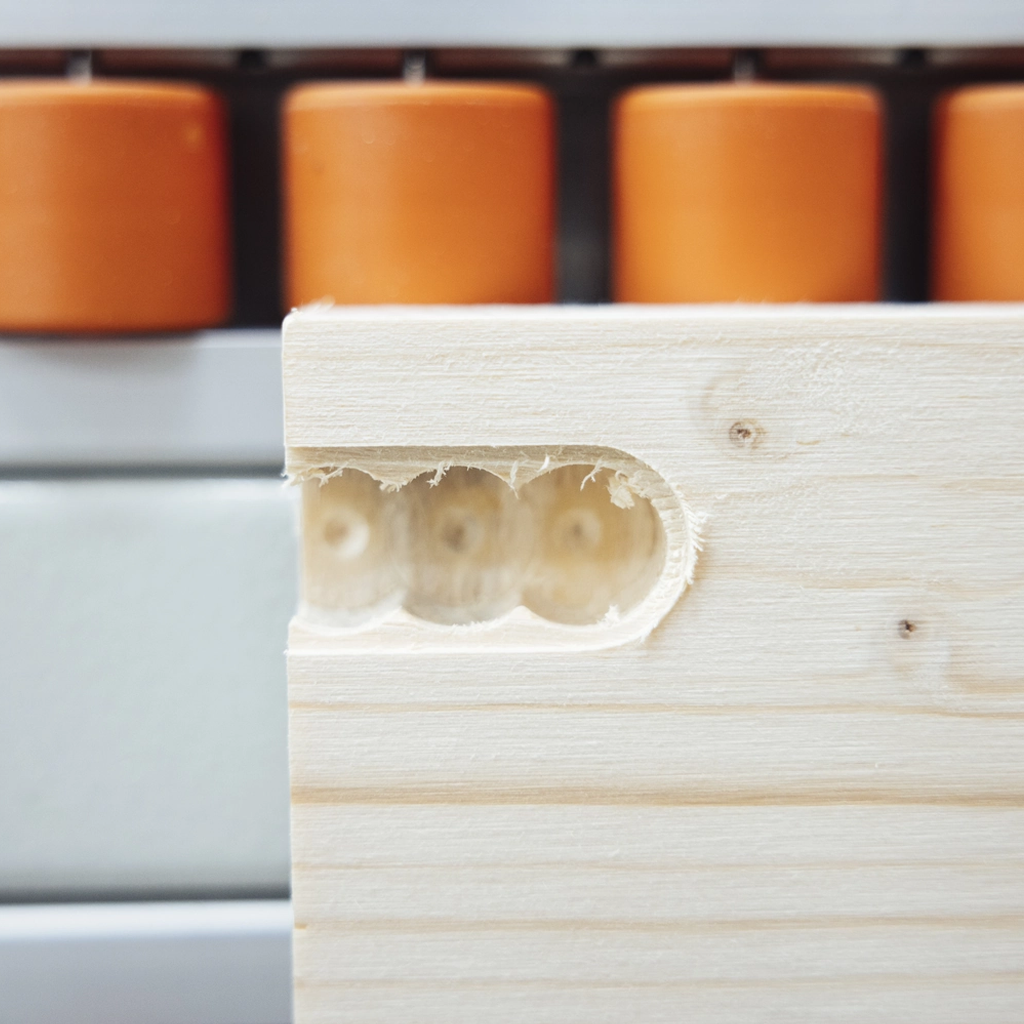

• No edge drilling required – only surface routing

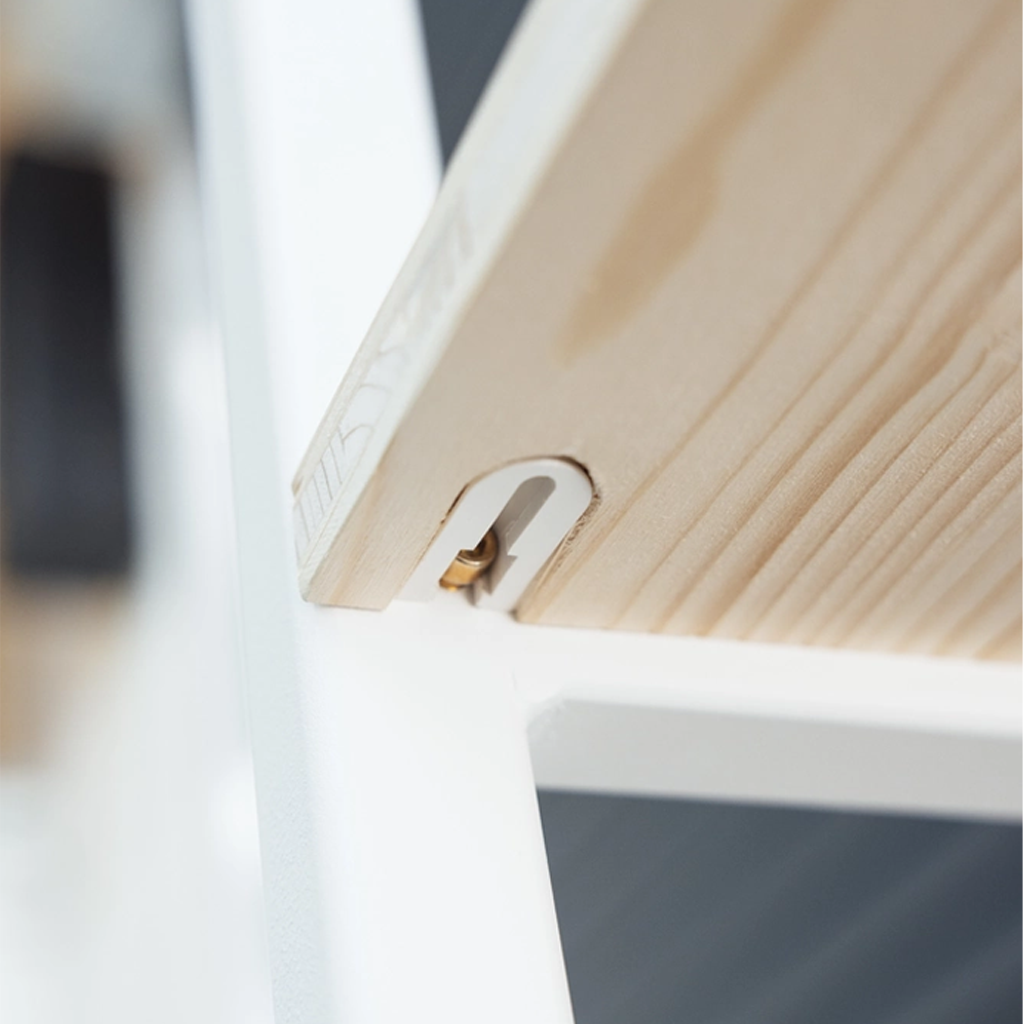

• Connection security – non-extractable and non-liftable, ideal for open shelves

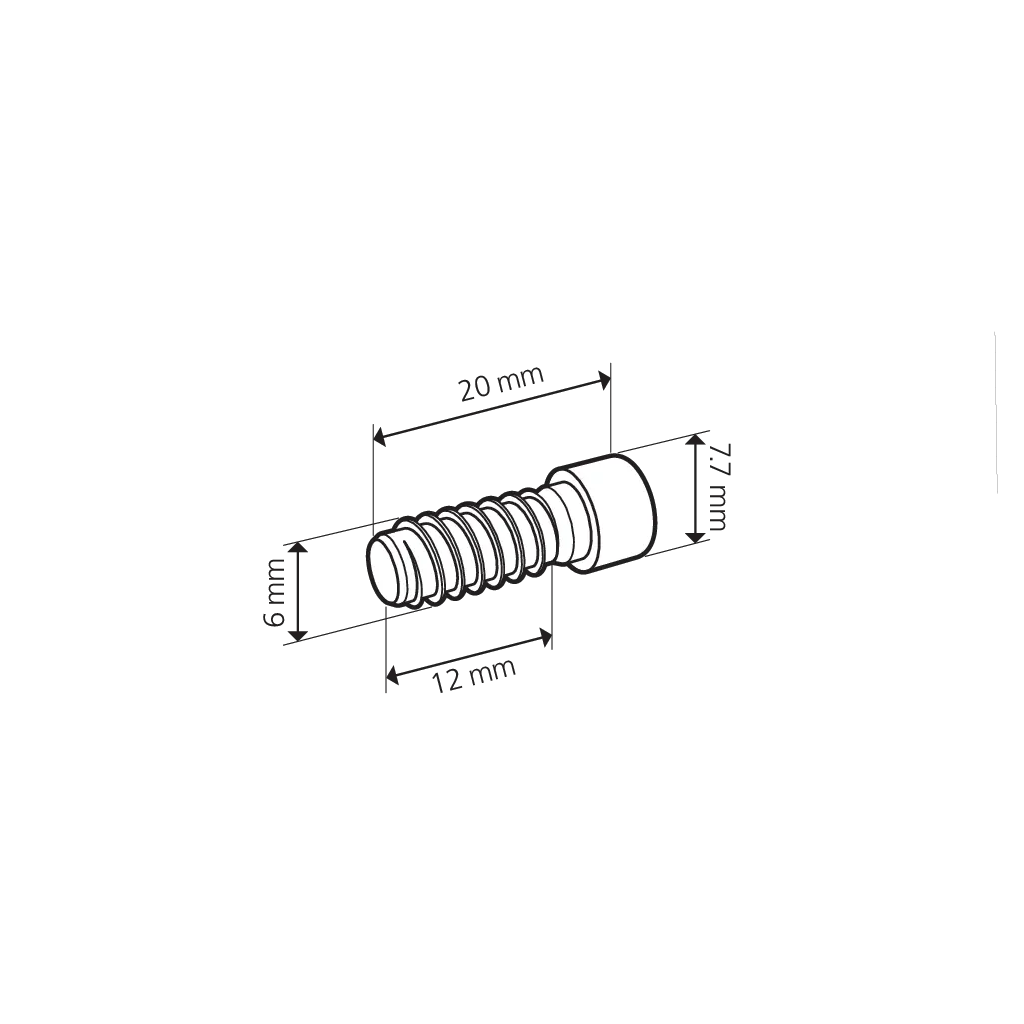

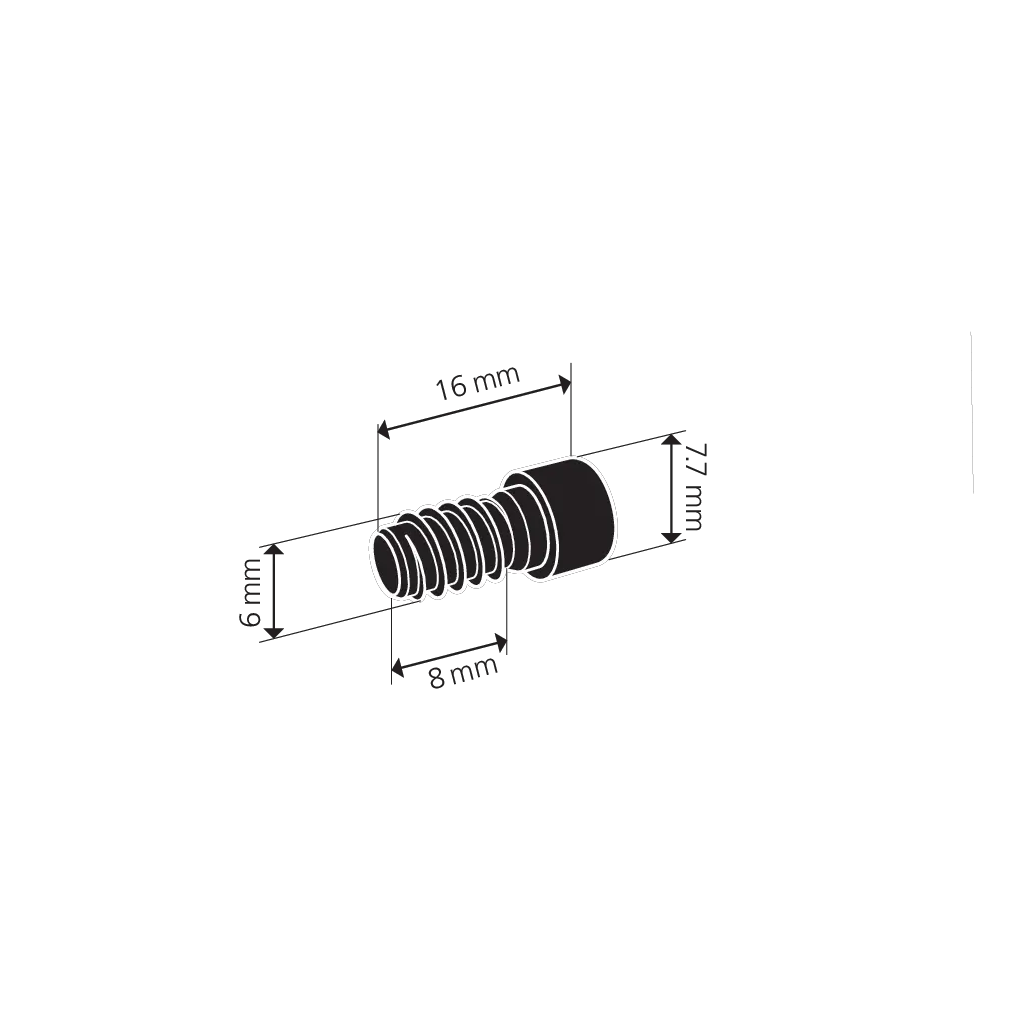

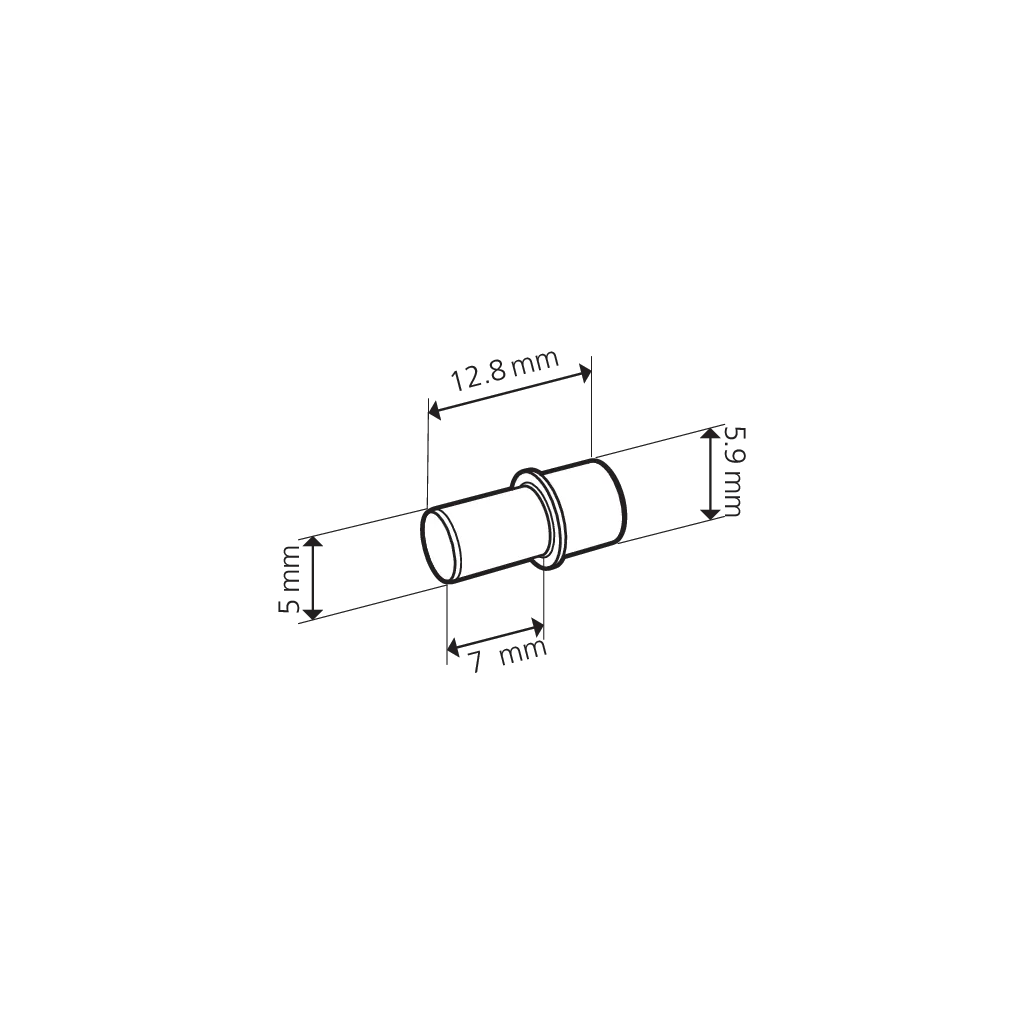

• Multifunctional open body design – compatible with both screws and shelf supports

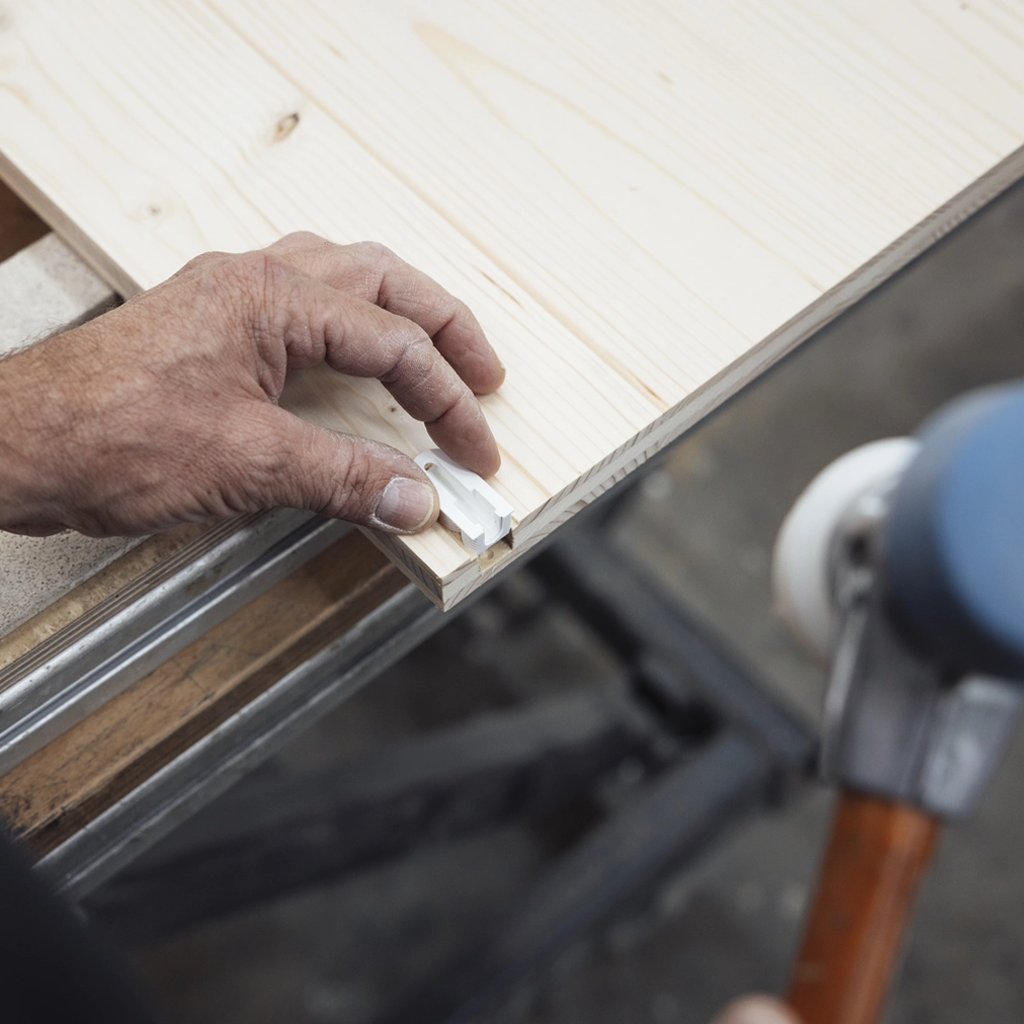

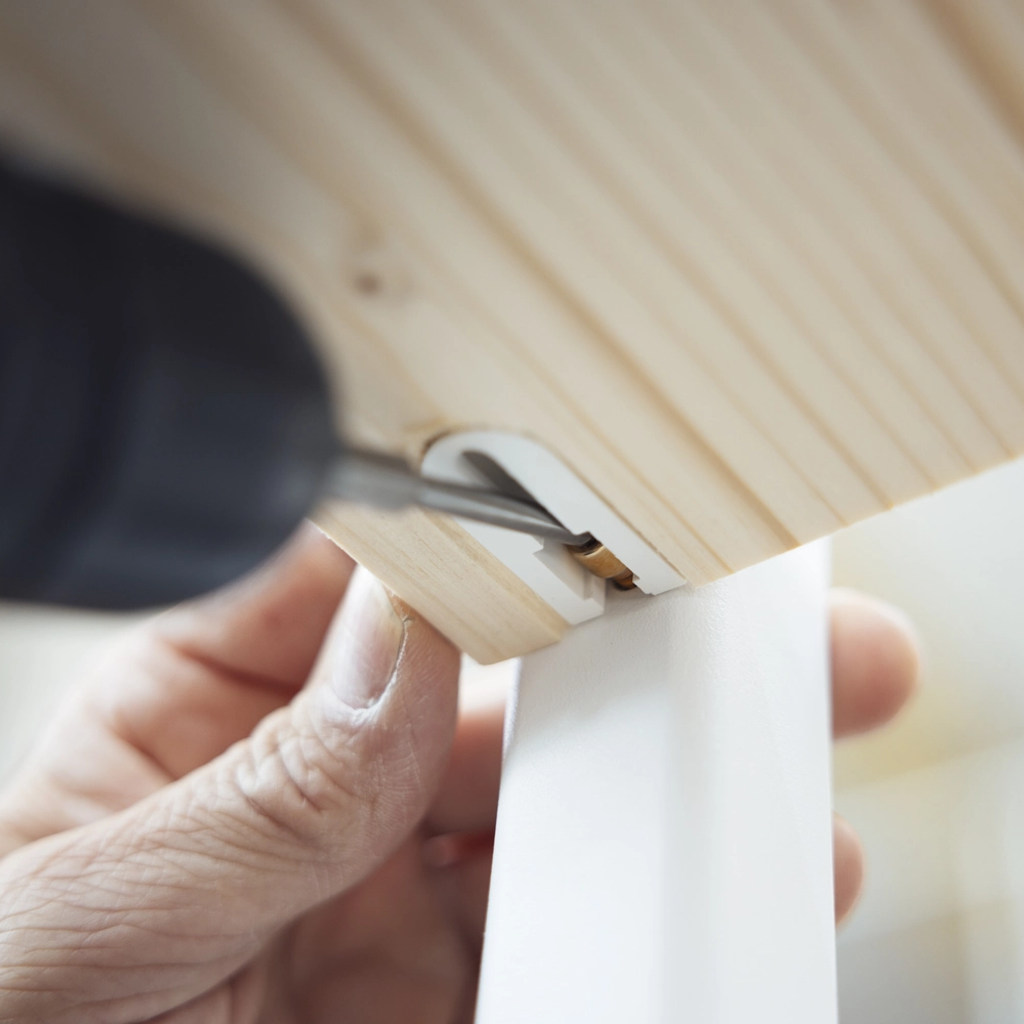

• Easy installation – surfaces can be simply positioned on pre-drilled screws or supports
• Installation possible by one person
• Excellent for CNC processing – also supports simple 3-axis or nesting equipment
• Pre-assembled during manufacturing – ideal for flat packaging and transportation

Technical Specifications:

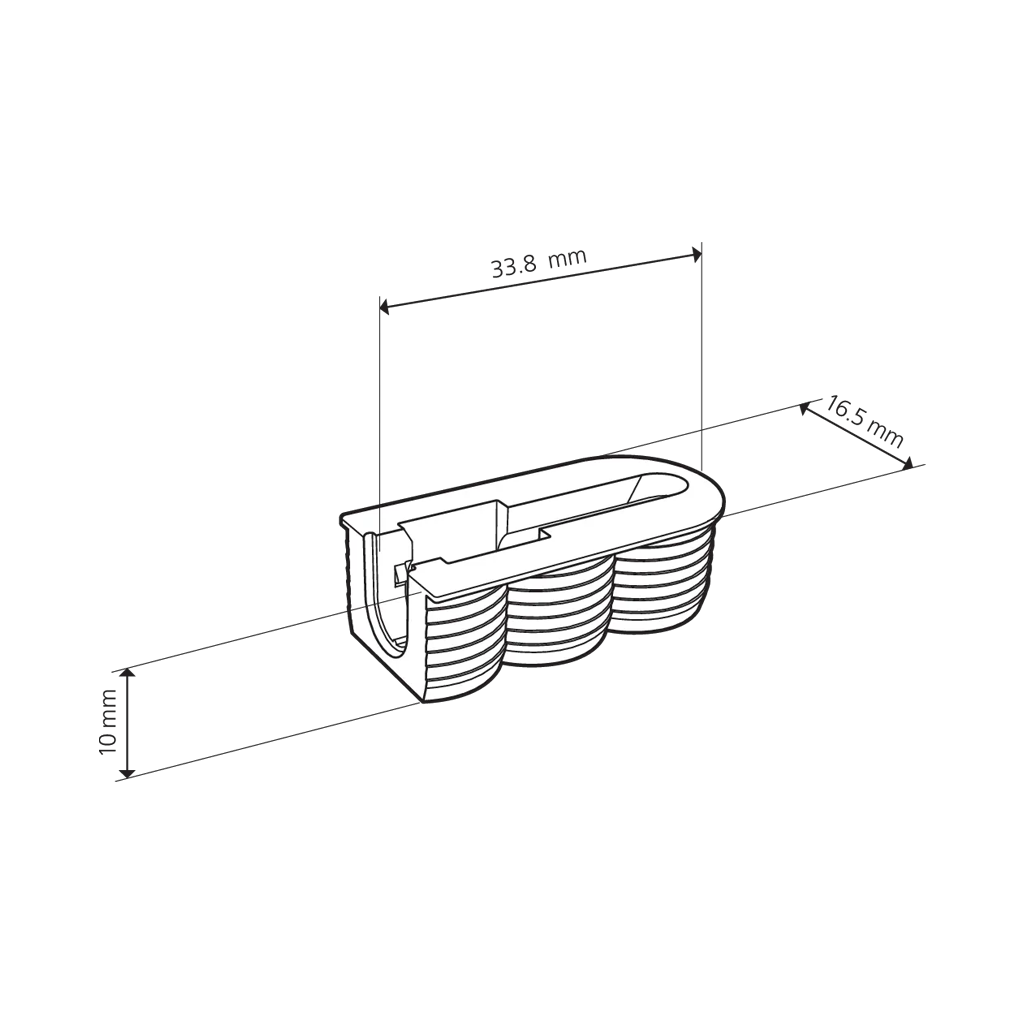

• Dimensions (L x W x H): 33.8 x 10.8 x 16.5 mm
• Minimum working part width: 21 mm
• Minimum material thickness for surface processing: 9 mm
• Drilling precision tolerance:

            – Longitudinal: ± 0.5 mm

            – Radial: ± 0 mm

• Router bit diameter: up to 12 mm
• Material: glass fiber reinforced plastic
• Color: white
• Packaging: 500 pcs.

Application Areas:

• Connecting kitchen cabinets and built-in furniture
• Frame and open shelf systems
• Shelf securing during transport (e.g., in campers, boats)
• Securing cladding panels with the option to remove without tools
• Commercial equipment and furniture designed for repeated assembly
• Convenient on-site installation, e.g., at job sites or customer homes
