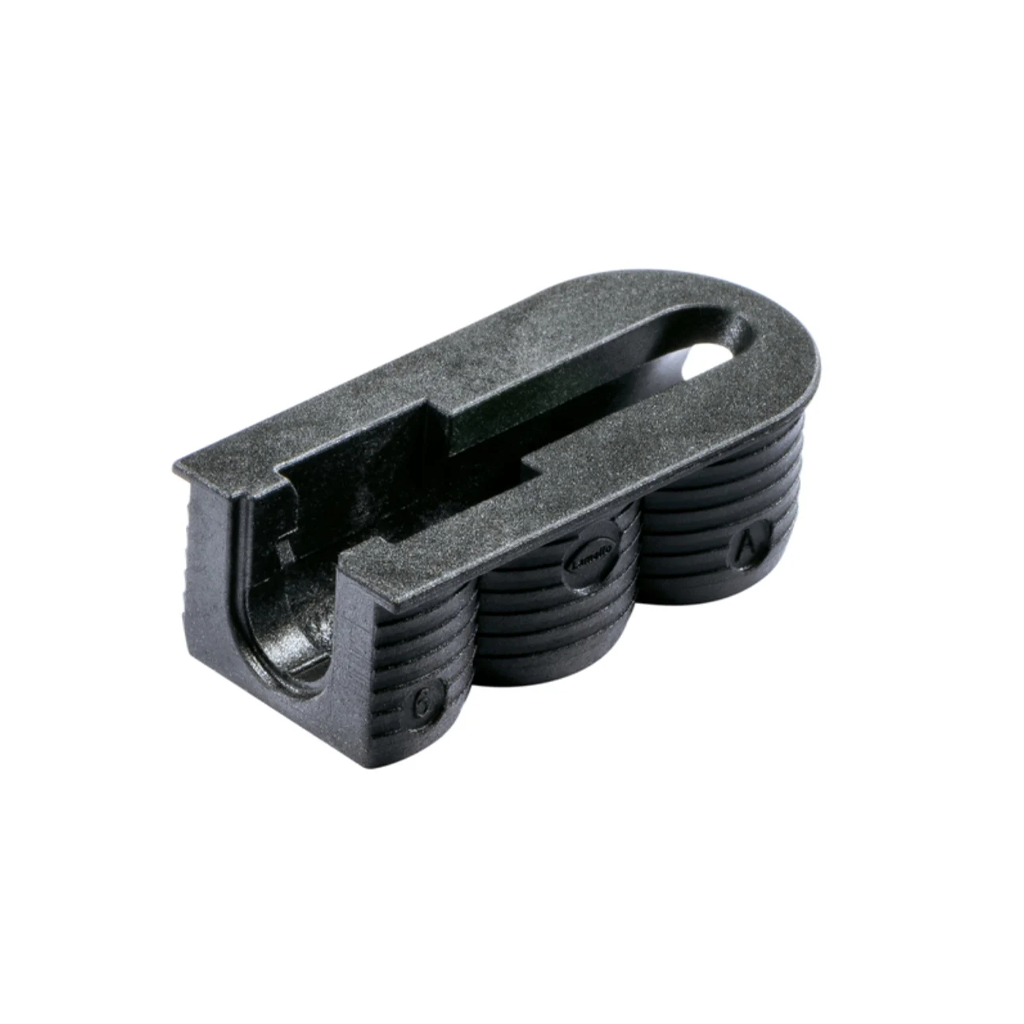

Lamello Cabineo X Furniture Connectors (Black; 500 pcs.)

Universal connectors for frame constructions and adjustable shelves.

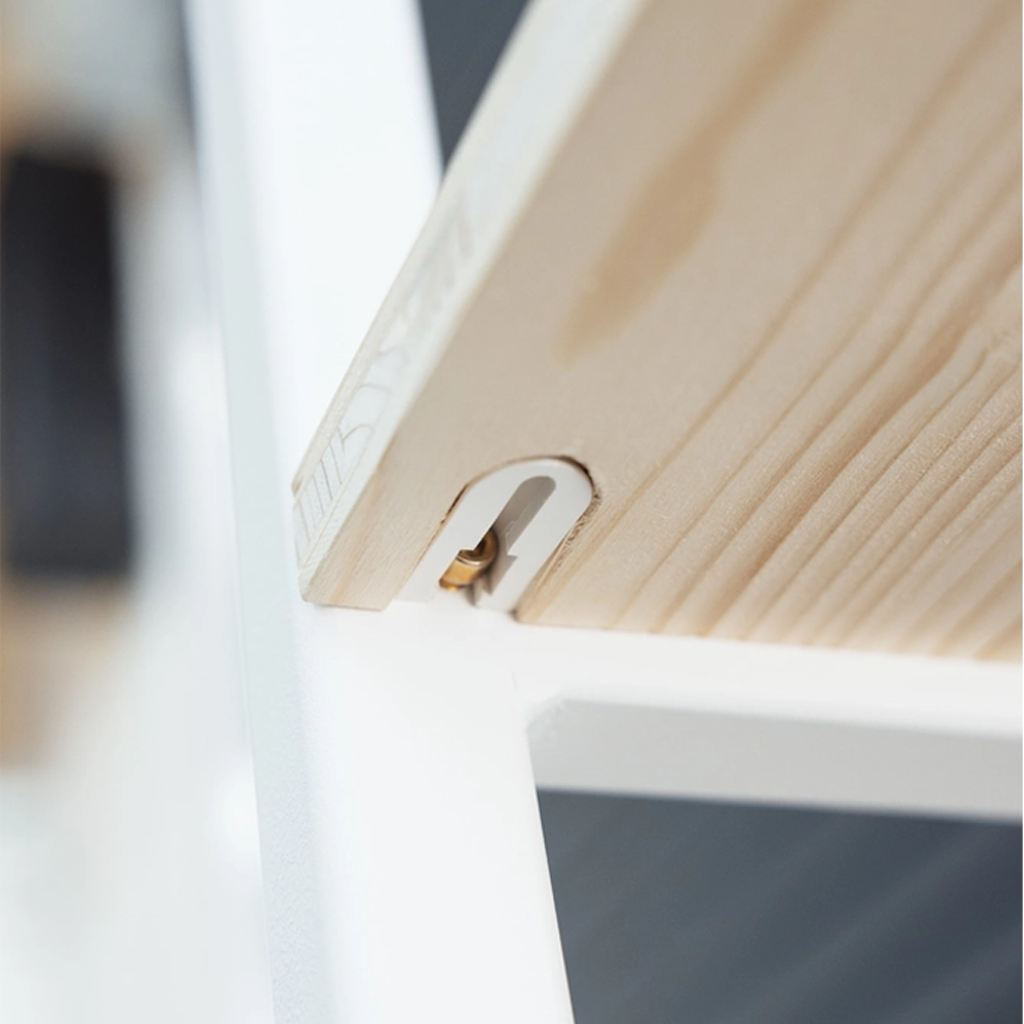

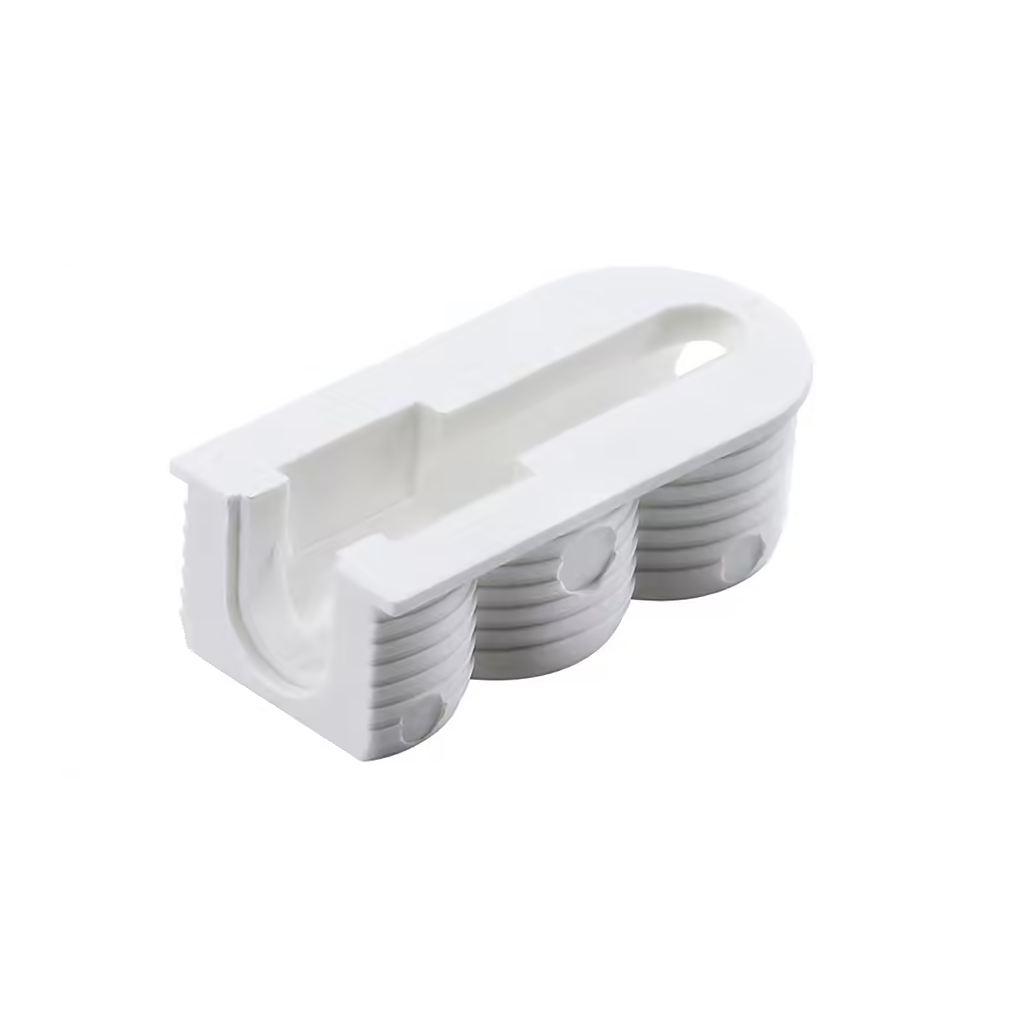

Cabineo X is an innovative single-piece furniture connector with an open design, intended for connecting furniture frames and reinforcing shelves. Its design allows for surface routing only, without edge drilling, significantly reducing processing time and improving installation efficiency.

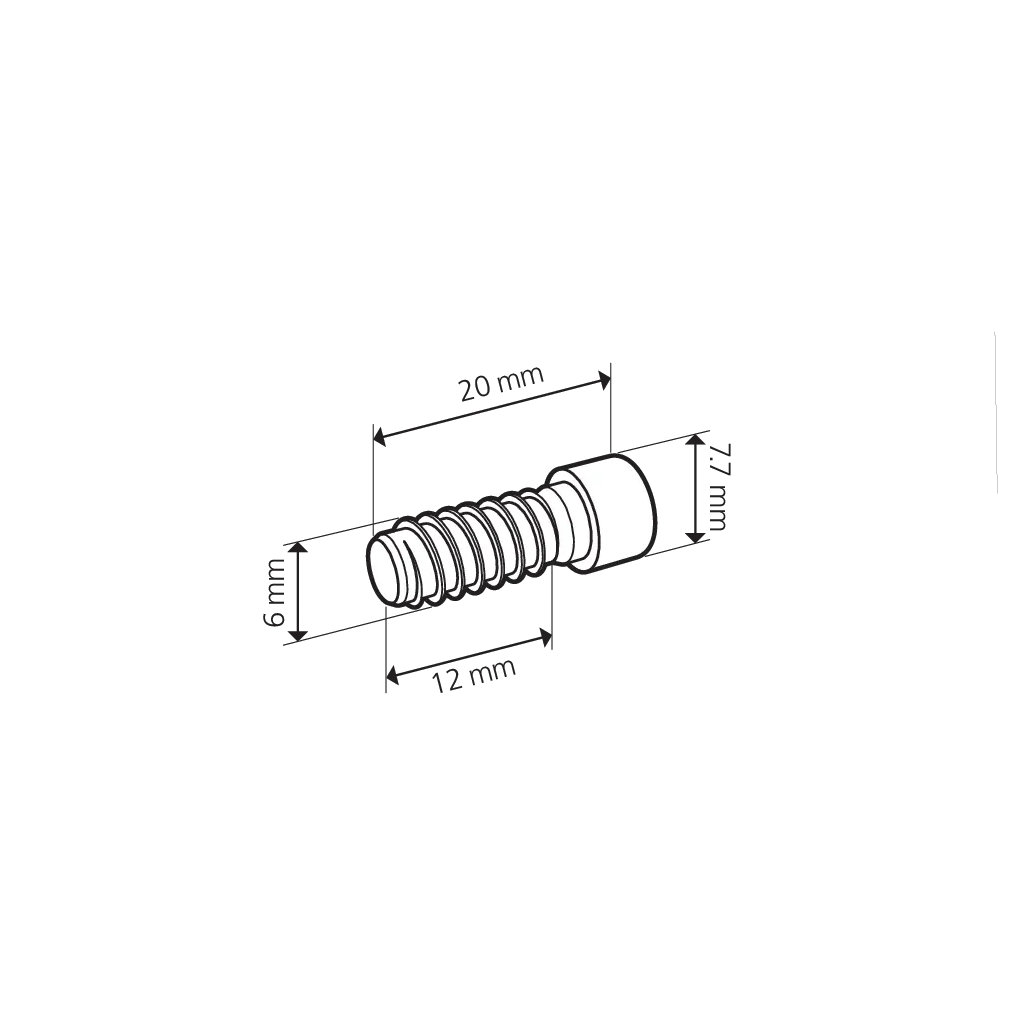

Cabineo X can be used with various types of screws or shelf supports, ensuring flexible usage depending on the application. It is ideally suited for shelves, cabinets, accessible cladding doors, or constructions for boats, campers, and public furniture where high fastening security is required.

Main Advantages:

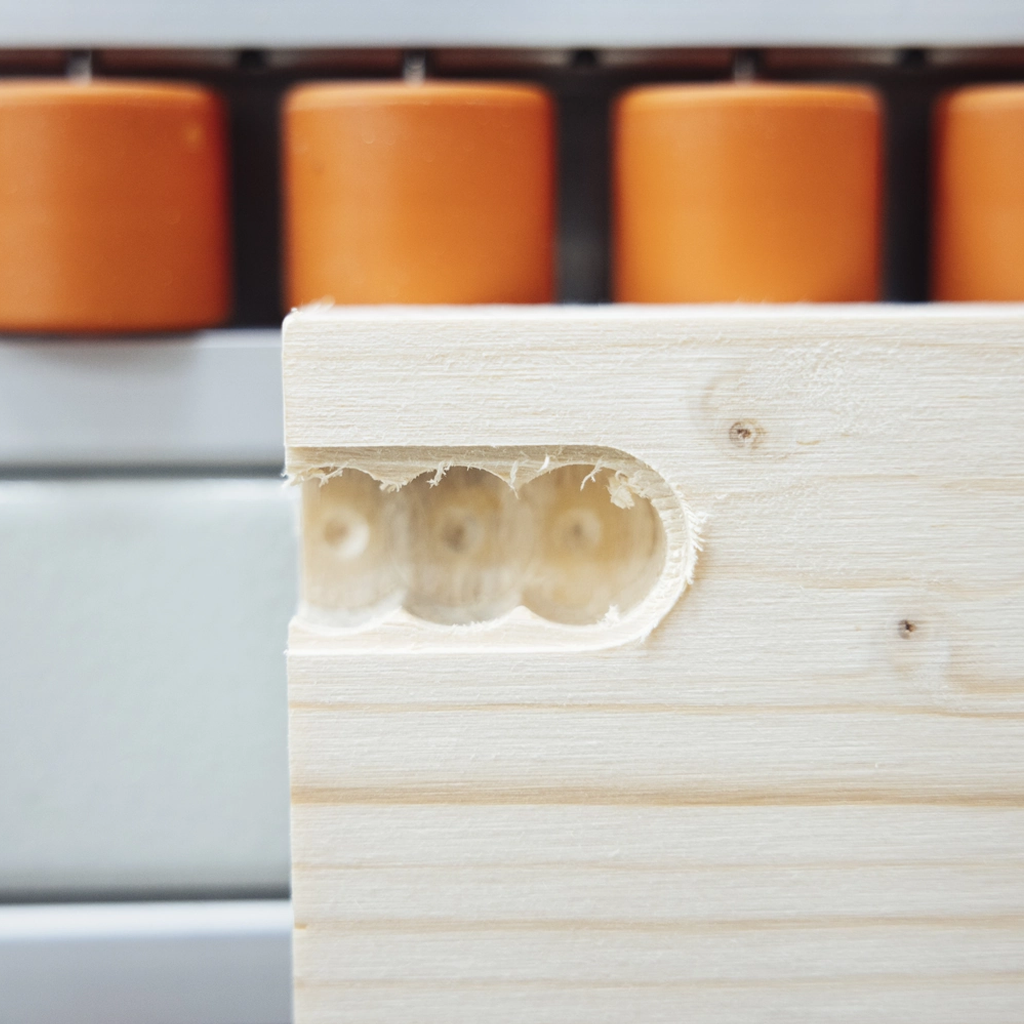

• No edge drilling required – only surface routing
• Connection security – non-extractable and non-liftable, ideal for open shelves

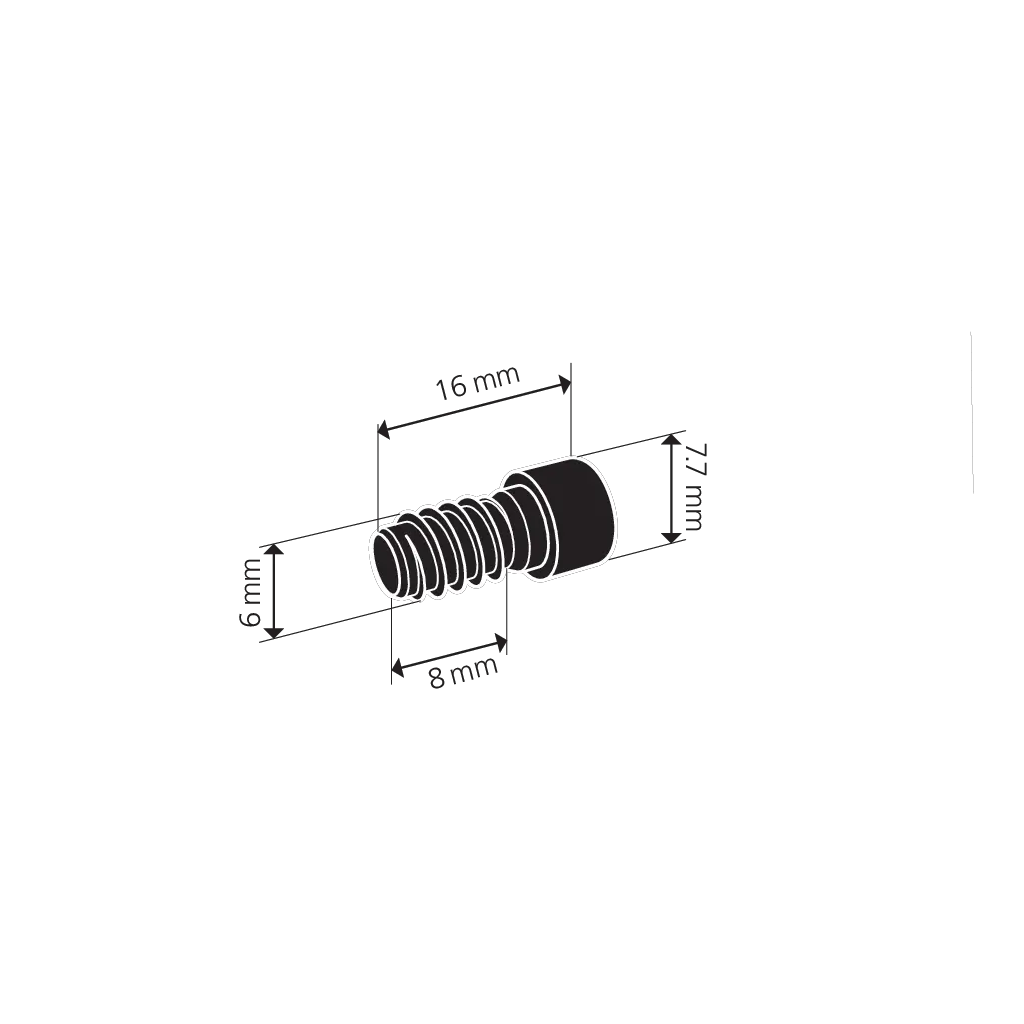

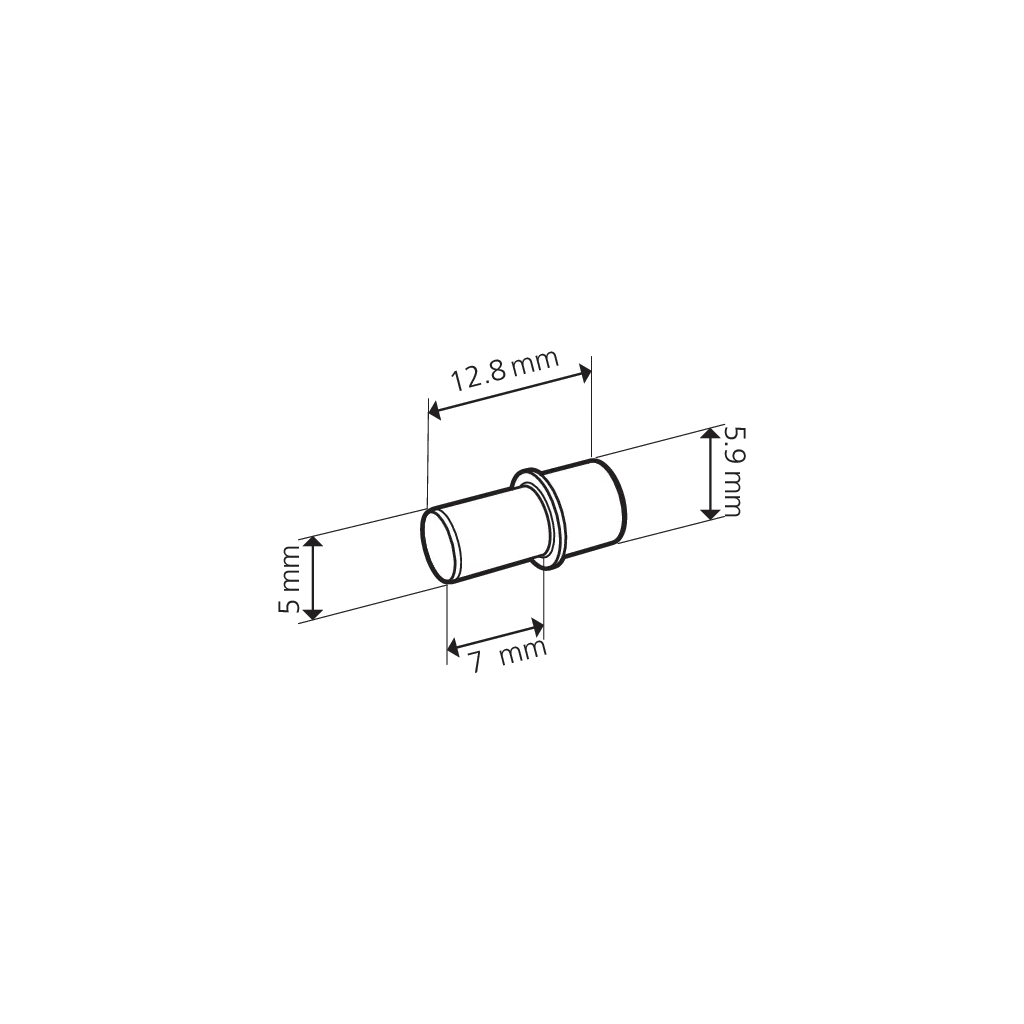

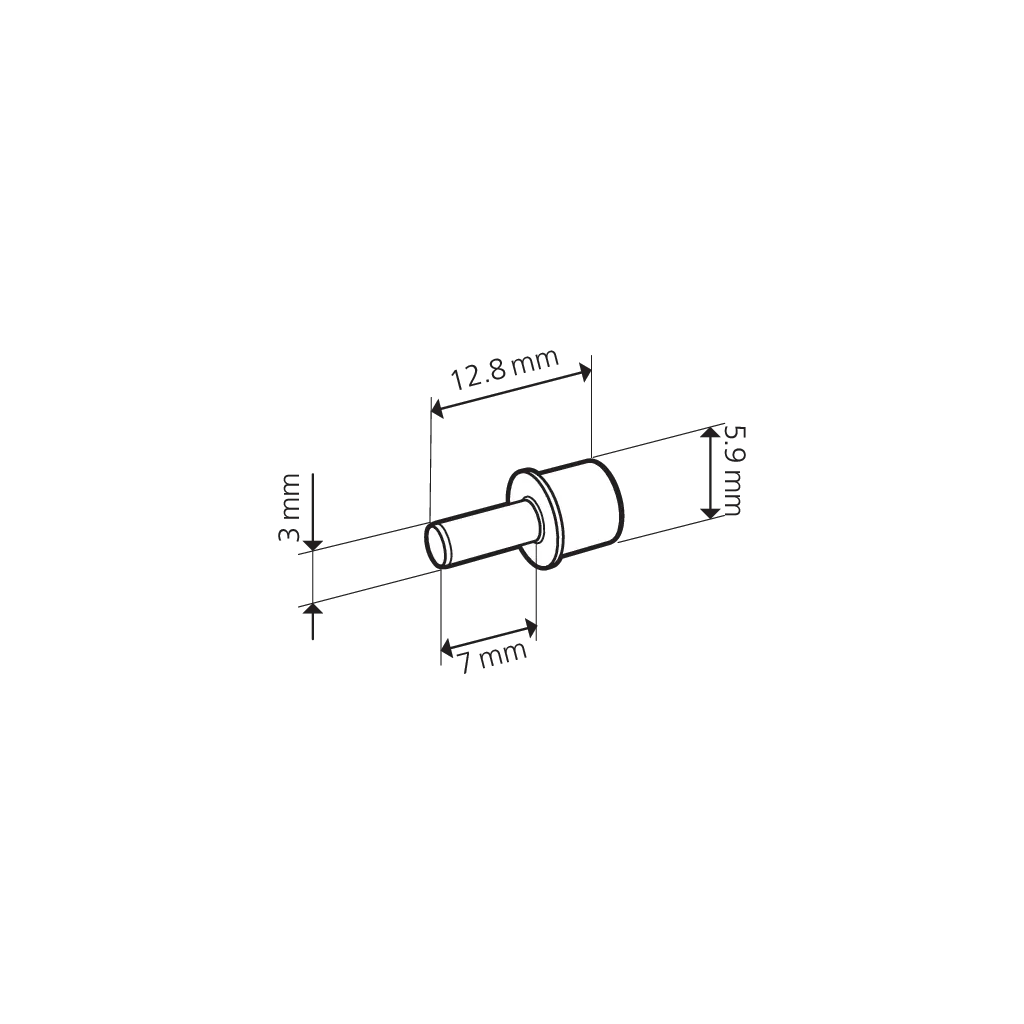

• Multifunctional open body design – compatible with both screws and shelf supports

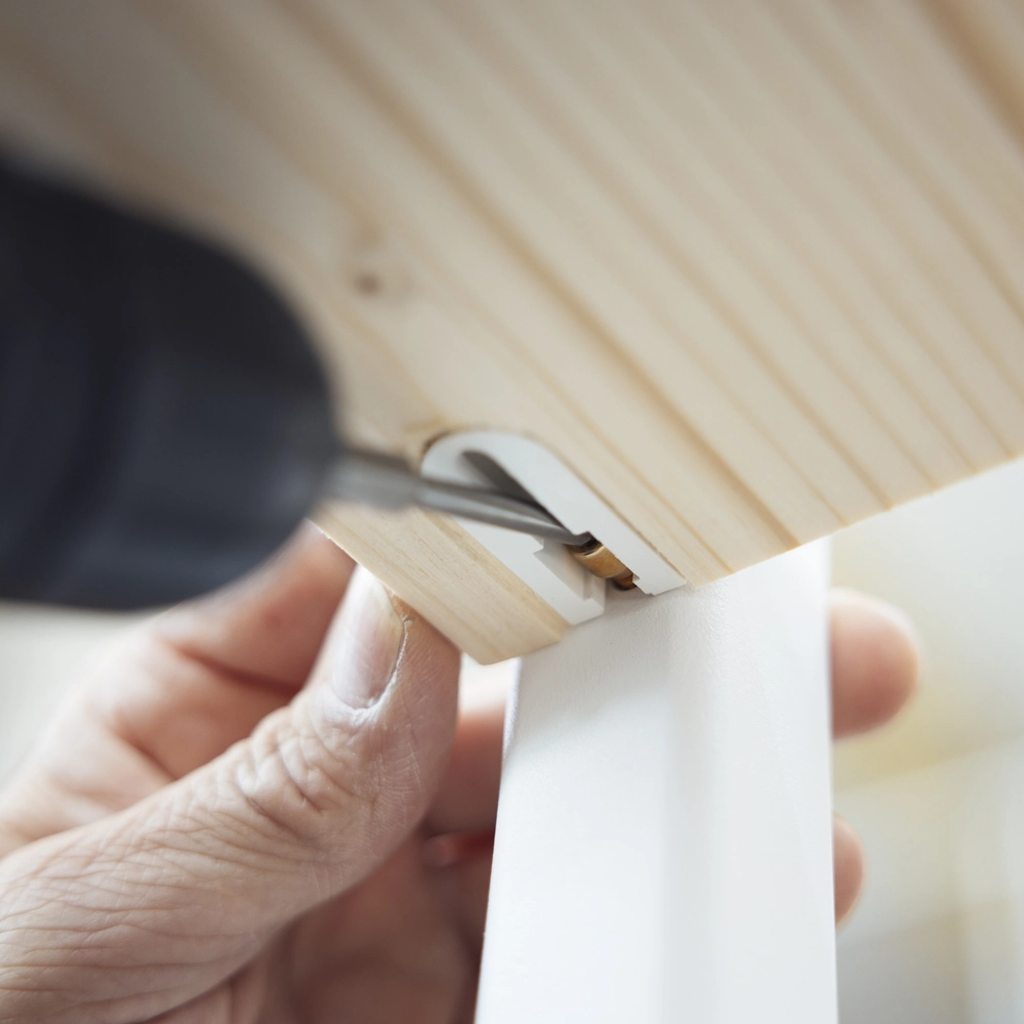

• Easy installation – surfaces can be simply placed on pre-drilled screws or supports
• Installation possible by one person
• Excellent for CNC processing – also supports simple 3-axis or nesting equipment

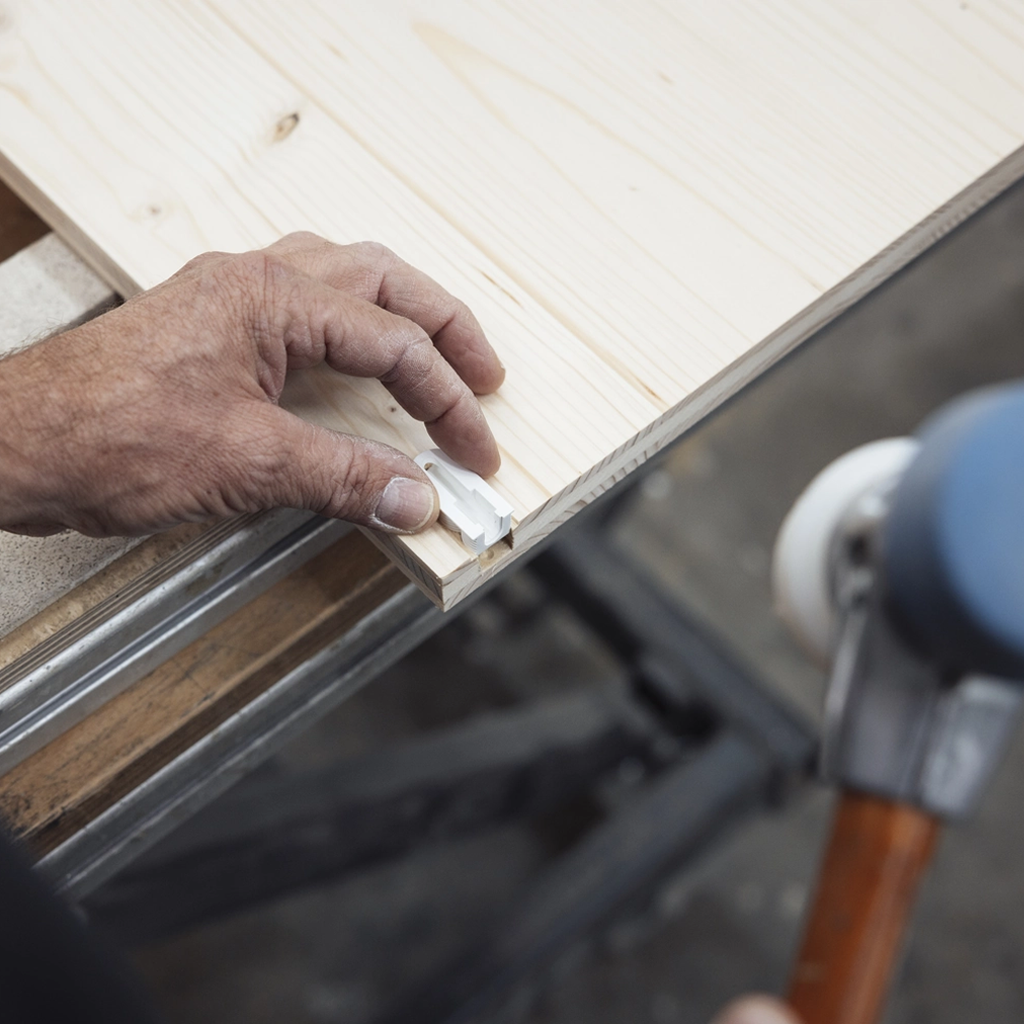

• Pre-assembled during manufacturing – ideal for flat packaging and transport

Technical Specifications:

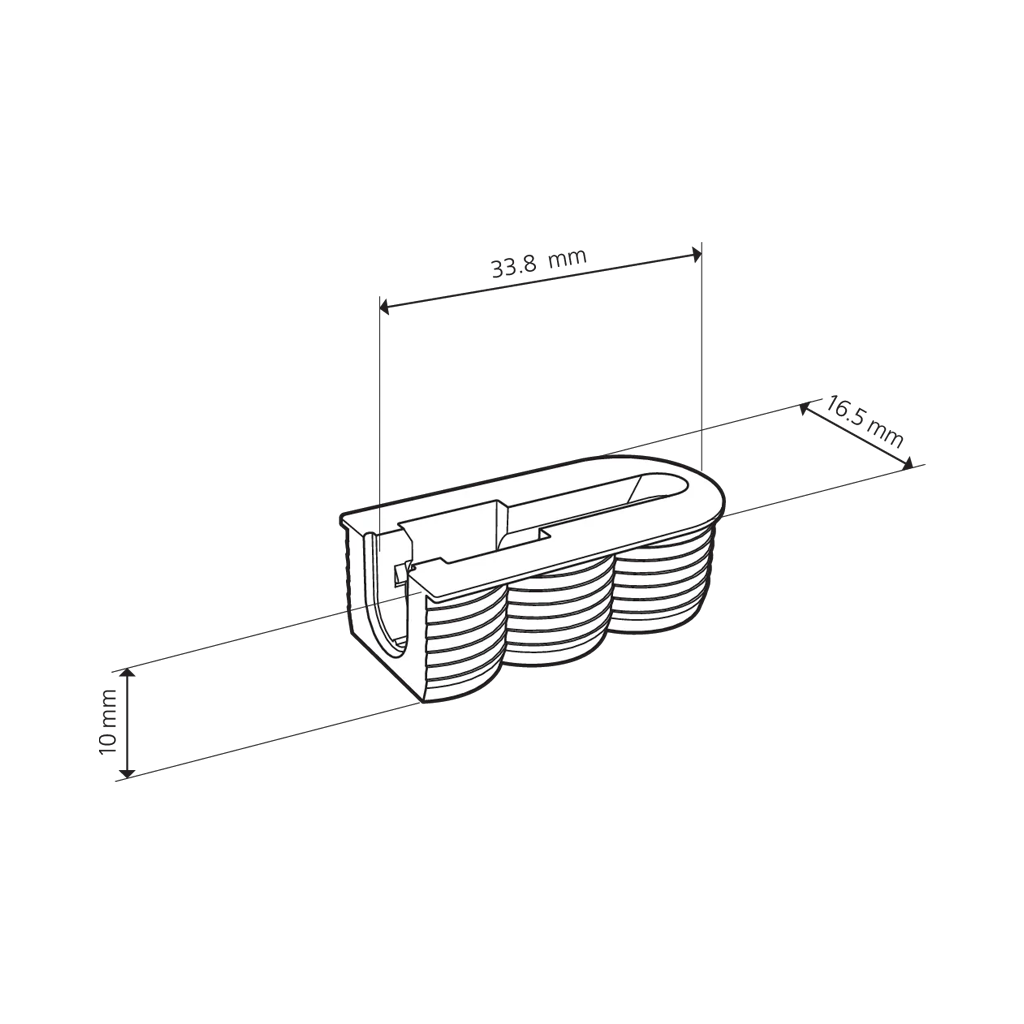

• Dimensions (L x W x H): 33.8 x 10.8 x 16.5 mm
• Minimum working part width: 21 mm
• Minimum material thickness for surface processing: 9 mm
• Drilling precision tolerance:

            – Longitudinal: ± 0.5 mm

            – Radial: ± 0 mm

• Router bit diameter: up to 12 mm
• Material: glass fiber reinforced plastic
• Color: white
• Packaging: 500 pcs.

Application Areas:

• Connecting kitchen cabinets and built-in furniture
• Frame and open shelf systems
• Shelf reinforcement during transport (e.g., in campers, boats)
• Securing cladding panels with the option for tool-free removal
• Commercial equipment and furniture designed for repeated assembly
• Convenient on-site installation, for example, in projects or customer homes
