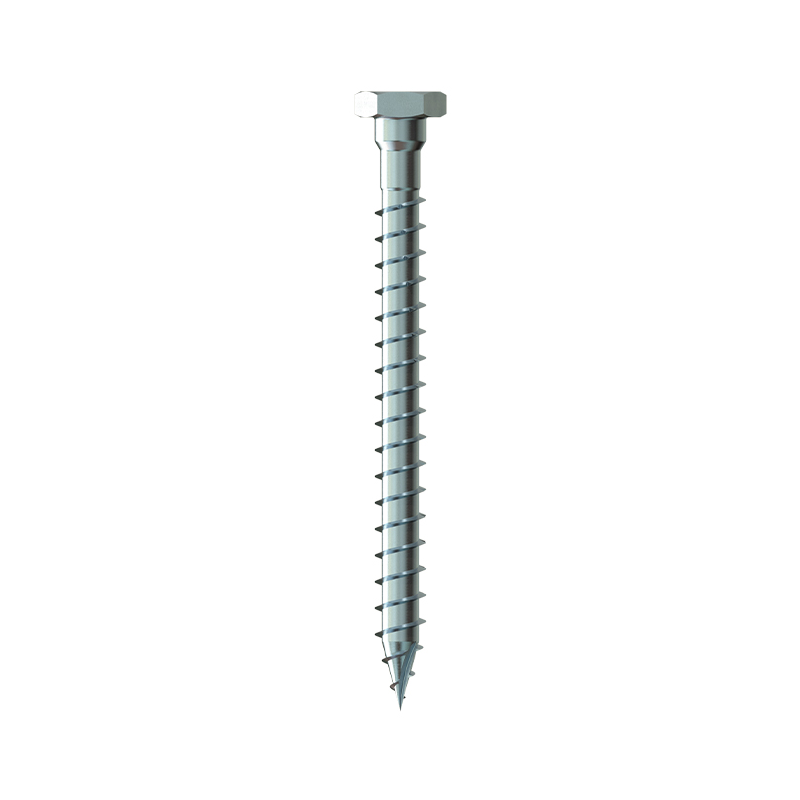

Transport Screw for Lifting Hook Reinforcement (11 x 125 mm; SW17)

Transport Screw for Lifting Hook Reinforcement

Material:

• High-quality steel


Description:

This screw is designed for securing a manual lifting hook, used to safely and easily lift various wooden components. The transport anchors have a load capacity of up to 1.3 tons. Tested according to ETA-11/0024 European Technical Approval. Ø 11 x 160 Eurotec transport anchor screw is intended for single-use only! It can be screwed into solid wood (softwood), laminated veneer lumber, glued wood, composite material panels, and composite beams without pre-drilling. Use in hardwood is not permitted!

Notes:

• Transport anchor screws are to be used only once
• Please read the operating instructions carefully before use
• Users must be trained before the first use
• The transport anchor must be inspected before each use and discarded in case of damage
• The weight of the lifted components must be known and within allowable limits
• Only use lifting devices specified in the operating instructions

System Operation:

• Screw in the screw without pre-drilling
• Open the anchor
• Lift the load
• Release the anchor
