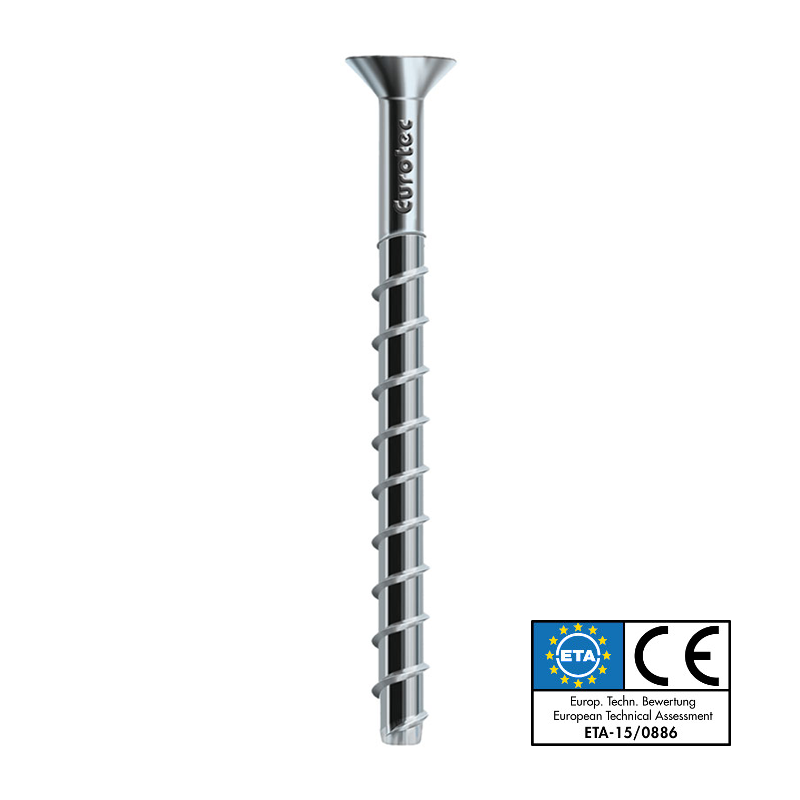

Rock Concrete Screw with Countersunk Head (7.5x160mm; TORX 40)

Rock concrete screw, countersunk head

Material:

• galvanized steel


Description:

The Rock concrete screw is a practical alternative to traditional anchors. This specialized screw is designed for anchoring in concrete (from C20/25 to C50/60 grade concrete) and has European Technical Assessment (ETA) for anchors in cracked and non-cracked concrete. The Rock concrete screw is installed directly into the drilled hole without the need for an anchor or any additional components. During installation, the thread cuts a corresponding thread in the base material. This type of installation is not only very straightforward but also ensures minimal installation time and maximum cost savings. The high-strength screw steel, an exceptionally complex hardening process, and the unique thread design ensure that the Rock concrete screw performs reliably even in C50/60 high-strength concrete.

Advantages and Features:

• Installation without anchors
• High pull-out resistance values
• No expansion effect, allowing for smaller edge and center distances
• Wide range of applications due to various screw head designs and diameters
• Cost-effective fastening solution
• Time savings during installation
• Material cost savings
• Quick and easy installation
• Installation and setting in one step

Notes:

• Strictly adhere to the specified installation parameters
• For use only in C20/25 to C50/60 grade concrete
• Screws are regulated by ETA-15/0886
