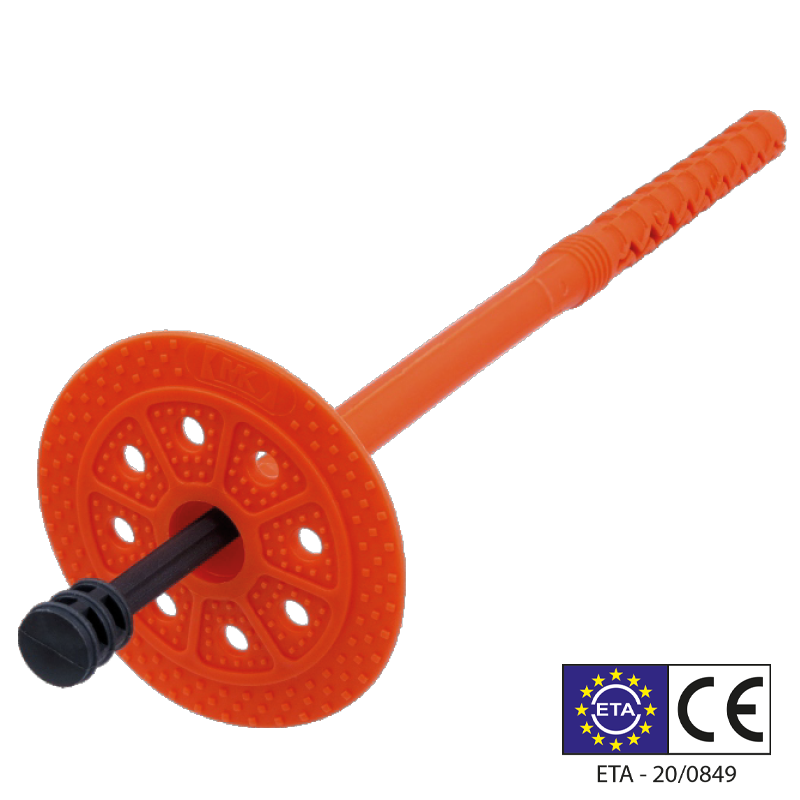

Insulation Anchor with Plastic Nail 10x200mm (60mm Plate)

Lightweight, durable, and effective fastening of insulation materials – suitable for both new constructions and renovations.

LIPN insulation anchor 10 × 200 mm with a plastic (polyamide) nail and extended expansion zone is designed for the mechanical installation of thermal insulation materials (e.g., mineral wool, foam) on various substrates – concrete, bricks, aerated concrete, etc. It is a lightweight yet mechanically robust solution, thanks to the glass fiber reinforced polyamide.

Advantages:

• Extended expansion zone – secure fixation even on porous or non-standard substrates
• Glass fiber reinforced polyamide nail – high resistance to pull-out and breakage
• 60 mm pressure plate – evenly distributes load without damaging the insulation material
• Lightweight and metal-free – no thermal bridges, ideal for ETICS systems
• European Technical Assessment (ETA) – guarantee of quality and compliance

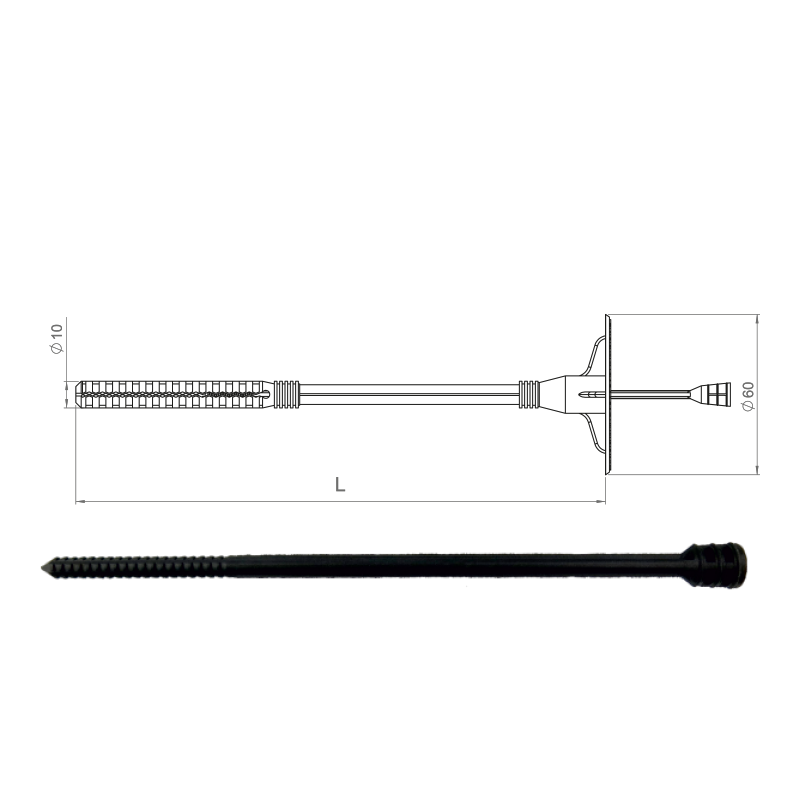

 Technical Information:

• Drill diameter: 10 mm
• Drill depth: ≥ 90 mm
• Effective anchoring depth: ≥ 80 mm
• Pressure plate diameter: 60 mm
• Anchor material: polypropylene (PP)
• Nail material: glass fiber reinforced polyamide
• Certification: ETA (European Technical Assessment)

1) Drill a hole in the wall	2) Insert the anchor into the hole	3) Secure the anchor by inserting the plugs	4) Properly installed insulation connector

1) Drill a hole in the wall	2) Insert the anchor into the hole	3) Secure the anchor by inserting the plugs	4) Properly installed insulation connector

Suitable for:

• Insulation systems (ETICS)
• Fastening mineral wool, foam, and other insulation materials
• Installation on concrete, bricks, lightweight concrete, and aerated concrete
• New constructions and renovations
