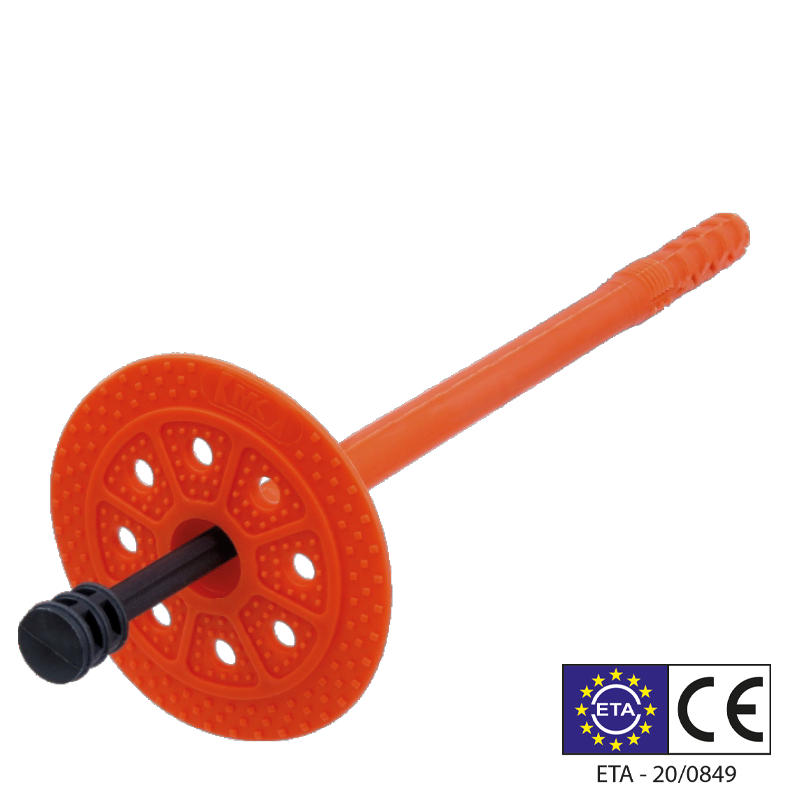

Insulation Anchor with Plastic Nail 10x180mm (60mm Plate, Short Expansion Zone)

Quick installation and reliable fixation – ideally suited for effective thermal insulation reinforcement.

LIN insulation anchor 10 × 180 mm with a short expansion zone and glass fiber reinforced polyamide nail is designed for simple and rapid mechanical installation of insulation materials, especially when the substrate material is not very dense or when it is necessary to reduce the drilling depth. This anchor provides high stability while maintaining a straightforward installation process.

Advantages:

• Short expansion zone – reduces the required drilling depth, allowing installation in thinner structures
• Glass fiber reinforced polyamide nail – lightweight yet durable against pull-out and breakage
• 60 mm pressure plate – uniform load distribution on the insulation material
• Non-metallic construction – prevents thermal bridges, ideally suited for ETICS systems
• ETA certification – complies with European technical requirements

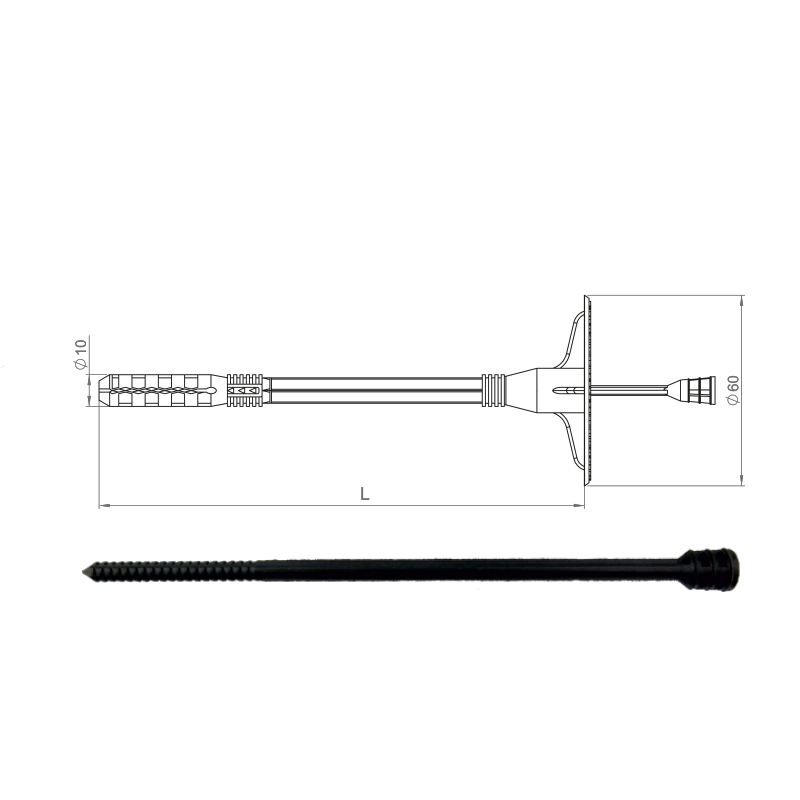

Technical Information:

• Drill diameter: 10 mm
• Drill depth: ≥ 60 mm
• Effective anchoring depth: ≥ 50 mm
• Pressure plate diameter: 60 mm
• Anchor material: polypropylene (PP)
• Nail material: glass fiber reinforced polyamide
• Certification: ETA (European Technical Assessment)

1) Drill a hole in the wall	2) Insert the anchor into the hole	3) Secure the anchor by inserting the plugs	4) Properly installed insulation connector

1) Drill a hole in the wall	2) Insert the anchor into the hole	3) Secure the anchor by inserting the plugs	4) Properly installed insulation connector

Suitable for:

• Securing mineral wool, foam, and other insulation materials
• ETICS (External Thermal Insulation Composite Systems)
• Construction work with limited drilling depth
• New builds and renovation projects
