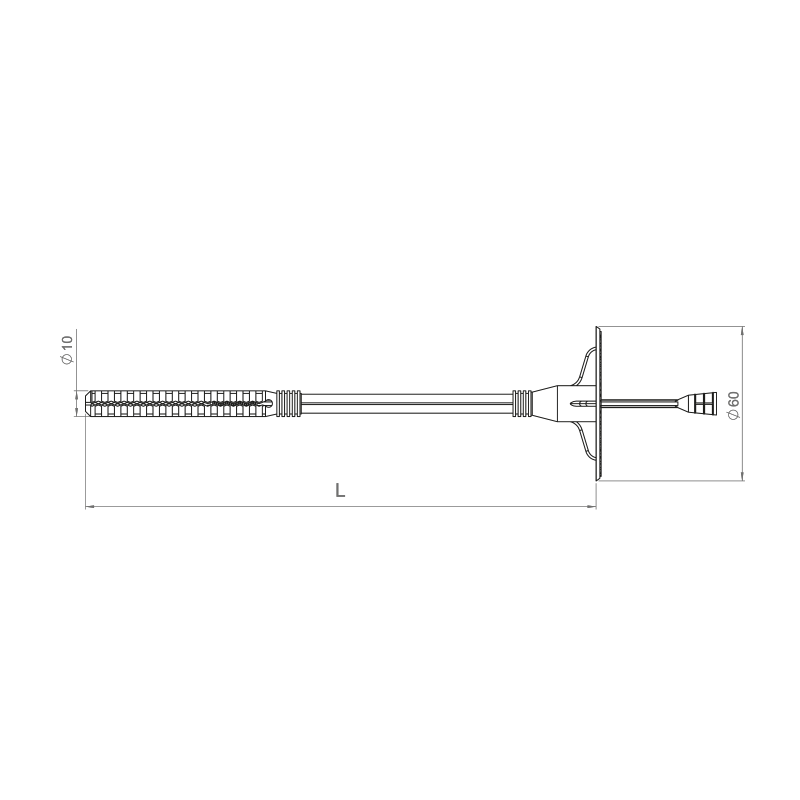

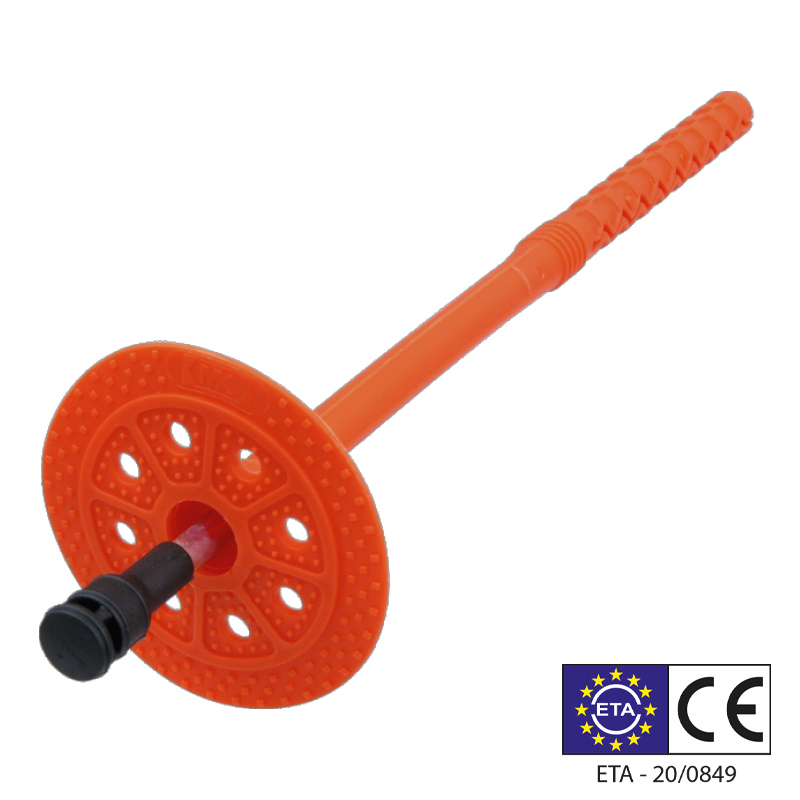

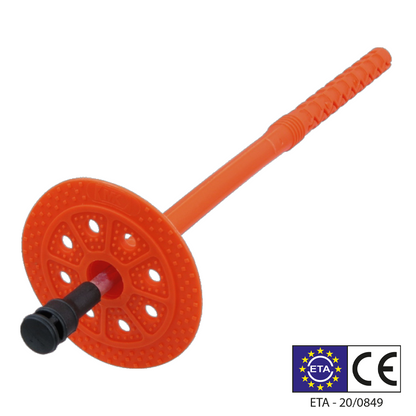

Insulation Anchor with Metal Nail 10x220mm (60mm Plate)

180 mm long insulation anchor with polyamide plug and extended expansion zone – Ø10 mm, Ø60 mm pressure plate.

A safe, effective, and durable solution for the mechanical fastening of thermal insulation materials to various substrates.

LIPMO insulation anchor with a polyamide-coated plug and extended expansion zone ensures reliable anchoring in various construction materials – including concrete, brick, and lightweight concrete. It is suitable for facade insulation systems (ETICS), where high pull-out resistance and firm mechanical fixation are required.

Advantages:

• 10 mm drill diameter – universal and quick installation
• 60 mm pressure plate – larger contact area for insulation material
• Extended expansion zone – improved grip even on problematic substrates
• Galvanized carbon steel plug with a polyamide head – high mechanical strength and corrosion protection
• Certified solution – complies with European Technical Assessment (ETA)
• Suitable for use in concrete, brick, and lightweight concrete, including perforated blocks

Technical Information:

• Drill diameter: 10 mm
• Minimum drill depth: ≥ 90 mm
• Anchoring depth: ≥ 80 mm
• Pressure plate diameter: 60 mm
• Materials:
•  – connector: polypropylene (PP)
•  – plug: carbon steel, galvanized, with polyamide coating

1) Drill the hole in the wall	2) Insert the anchor into the hole	3) Secure the anchor by driving in the plug	4) Correctly installed insulation connector

1) Drill the hole in the wall	2) Insert the anchor into the hole	3) Secure the anchor by driving in the plug	4) Correctly installed insulation connector

Suitable for:

• Insulation systems (ETICS)
• Securing mineral wool, foam, and other insulation materials
• Installation on concrete, brick, lightweight concrete, and aerated concrete
• New constructions and renovations
