Insulation Anchor with Metal Nail 10x160mm (60mm Plate, Short Expansion Zone)

Exceptional mechanical strength and reliable insulation anchoring even in challenging conditions.

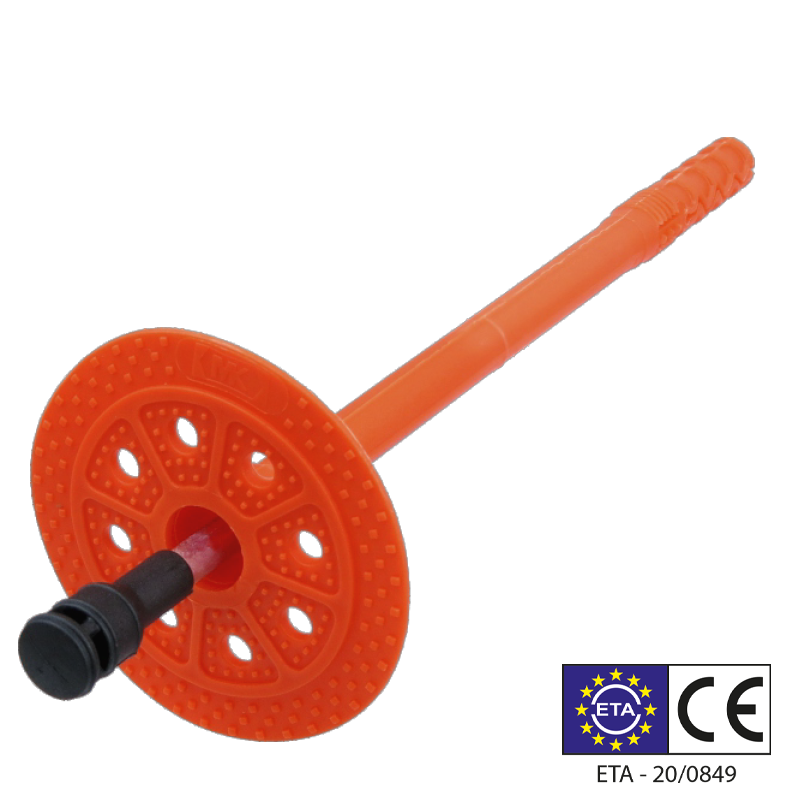

The LIMO insulation anchor 10 × 160 mm features high-performance mechanical fastening with a galvanized carbon steel nail and a polyamide coating, combining the strength of metal with thermal insulating properties. Thanks to the short expansion zone, this anchor is particularly suitable for quick and efficient installation on various substrates, maintaining high pull-out resistance.

Advantages:

• Metal nail with polyamide head – high strength and minimal thermal bridge
• Short expansion zone – reduces required drilling depth
• 60 mm pressure plate – uniform compression of insulation material
• High resistance to pull-out and mechanical forces
• ETA certified product – tested in accordance with EU construction standards
• Suitable for mineral wool, expanded polystyrene, PIR, and other insulation materials

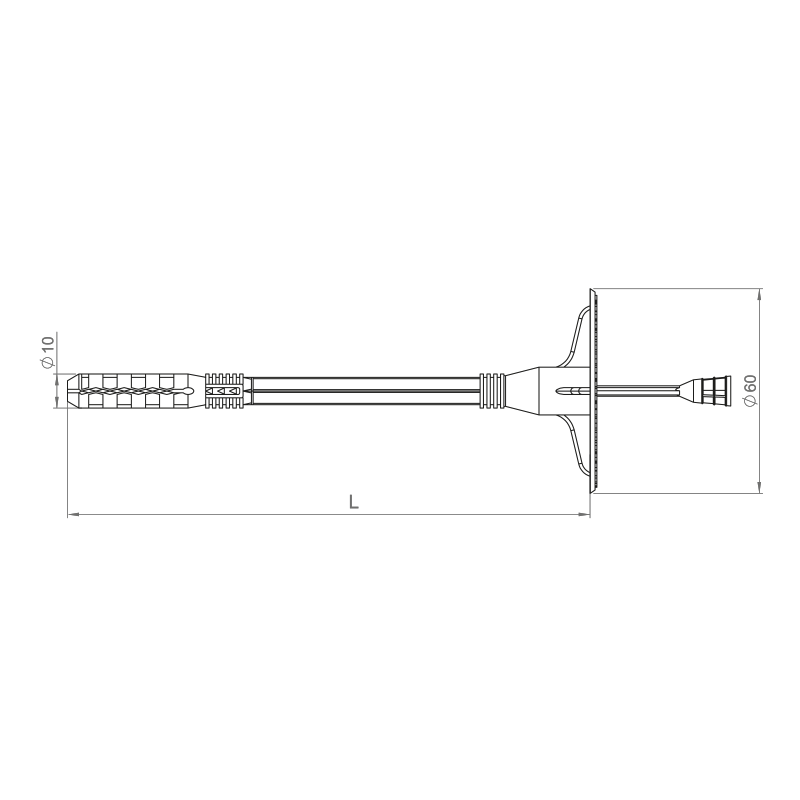

 Technical Information:

• Drill diameter: 10 mm
• Drill depth: ≥ 60 mm
• Effective anchoring depth: ≥ 50 mm
• Anchor length: 160 mm
• Pressure plate diameter: 60 mm
• Connector material: polypropylene (PP)
• Nail material: galvanized carbon steel with polyamide coating
• Certification: European Technical Assessment (ETA)

1) Drill a hole in the wall	2) Insert the anchor into the hole	3) Secure the anchor by driving in the nail	4) Correctly installed insulation connector

1) Drill a hole in the wall	2) Insert the anchor into the hole	3) Secure the anchor by driving in the nail	4) Correctly installed insulation connector

Suitable for:

• External Thermal Insulation Composite Systems (ETICS)
• Securing mineral wool and other insulation materials
• Applicable in concrete, bricks, aerated concrete, and other base materials
• For both new constructions and renovation works
