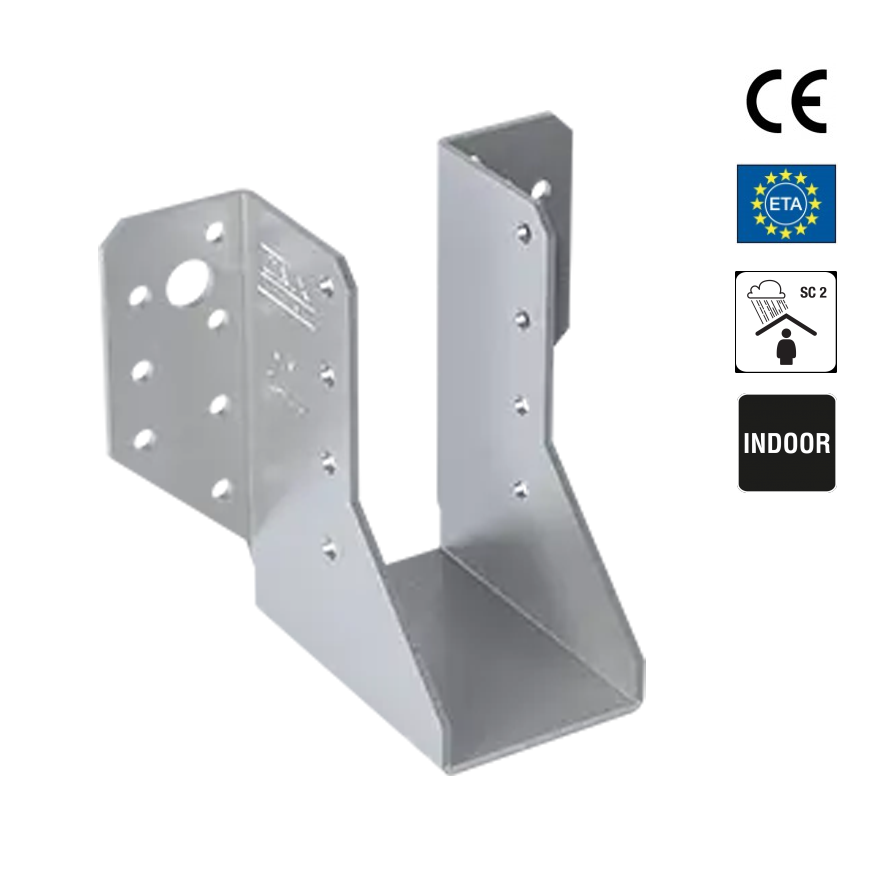

Domax WB 49 Beam Bracket (45 × 97 × 75 mm; 2 mm thickness)

A stable and reliable solution for timber beam installation – no gaps, no compromises.

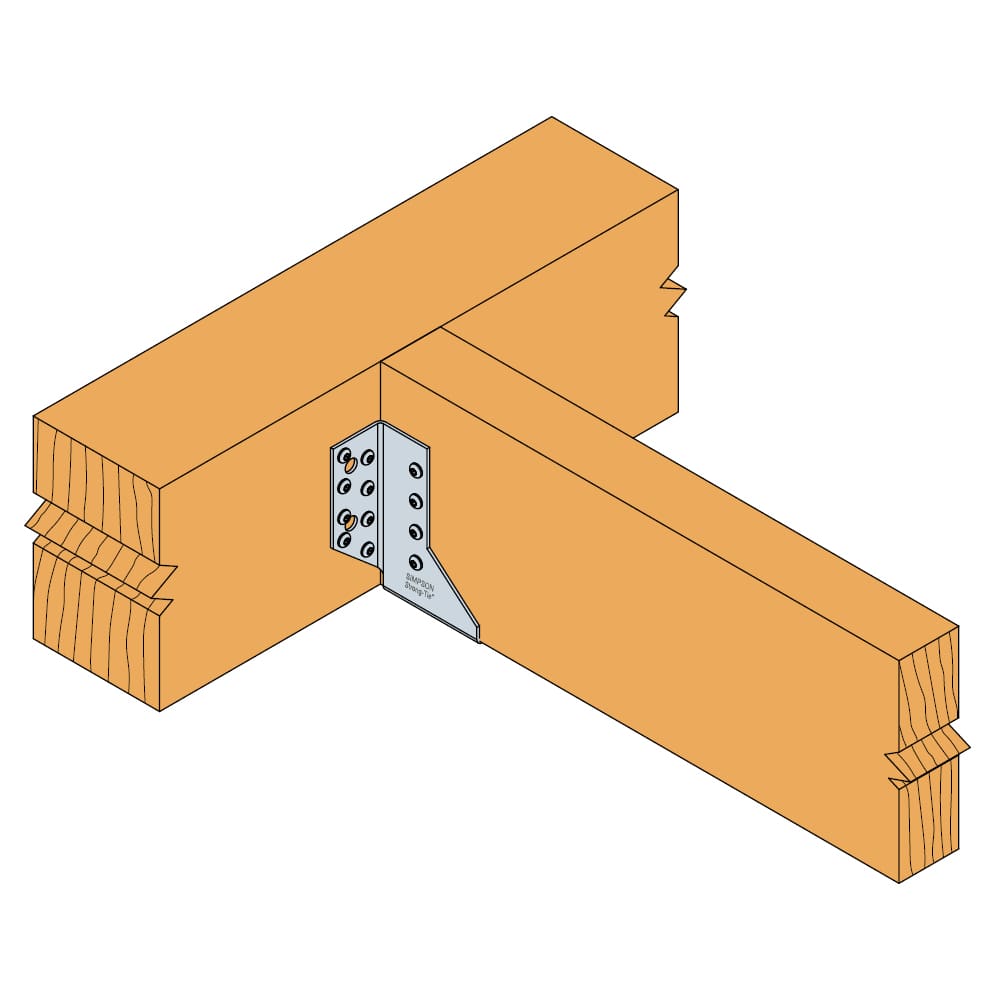

The Domax WB 49 beam bracket is designed for the secure fastening of standard timber beams, allowing installation without gaps between connecting elements. Ideal for both timber-to-timber and timber-to-concrete connections, thanks to the enlarged installation holes.

The bracket's construction ensures high durability and strength, while the galvanized coating (ZN) protects against corrosion in indoor and sheltered outdoor environments.

Advantages:

• Ensures a tight, rigid beam connection
• Compatible with various types of fasteners – wood screws, nails, concrete anchors
• Holes also suitable for M10 screws and anchors – for installation on concrete walls
• Universal size (WB 49) – fits the most popular beams available on the market
• 2 mm thick steel construction – high mechanical strength
• Galvanized coating (ZN) – protection against rust and moisture

Technical Information:

• Model: WB 49
• A (internal width): 45 mm
• B (height): 97 mm
• C (depth): 75 mm
• Steel thickness: 2 mm
• Material: DX51D + Z275 (galvanized steel)
• Corrosion protection: ZN
• Weight: 0.270 kg

Fastening Options:

For Wood:

– special nails ø4 mm

– wood screws ø10 mm

– M10 screws

For Concrete:

– concrete anchors M10
