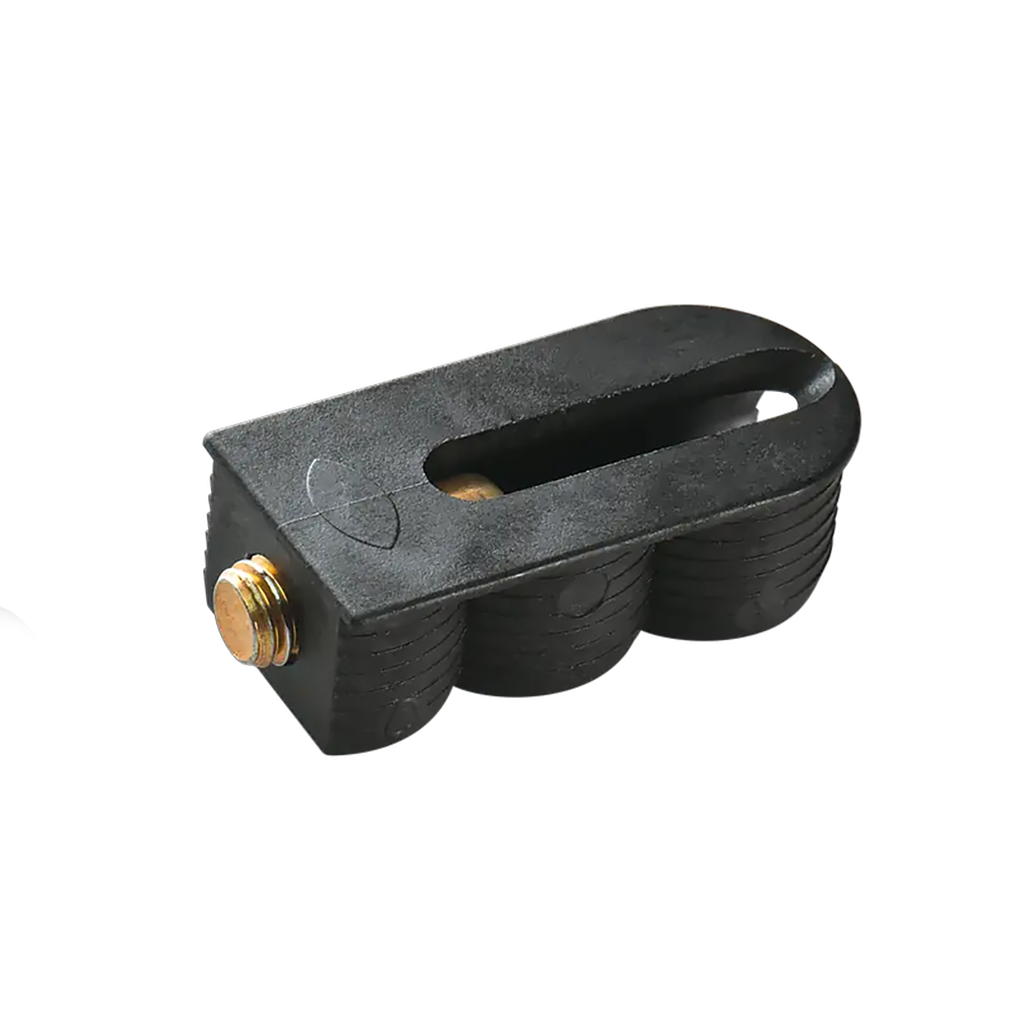

Cabineo 8 M6 Furniture Connector (Black)

Cabineo 8 M6 is a high-performance, wear-resistant, one-piece furniture connector designed for quick and precise joining of various materials, including wood, HPL, aluminum, and steel. The connector provides high fastening strength, thanks to the M6 threaded screw, which is screwed directly into a prepared hole or a pre-installed insert.

Designed for efficient CNC processing without edge drilling – Cabineo 8 M6 is ideally suited for 3-axis CNC milling centers and nesting equipment. Unlike traditional furniture connectors, Cabineo significantly reduces installation time, eliminates the need for dowels, and ensures a wear-resistant assembly suitable for repeated disassembly and reassembly.

Advantages:

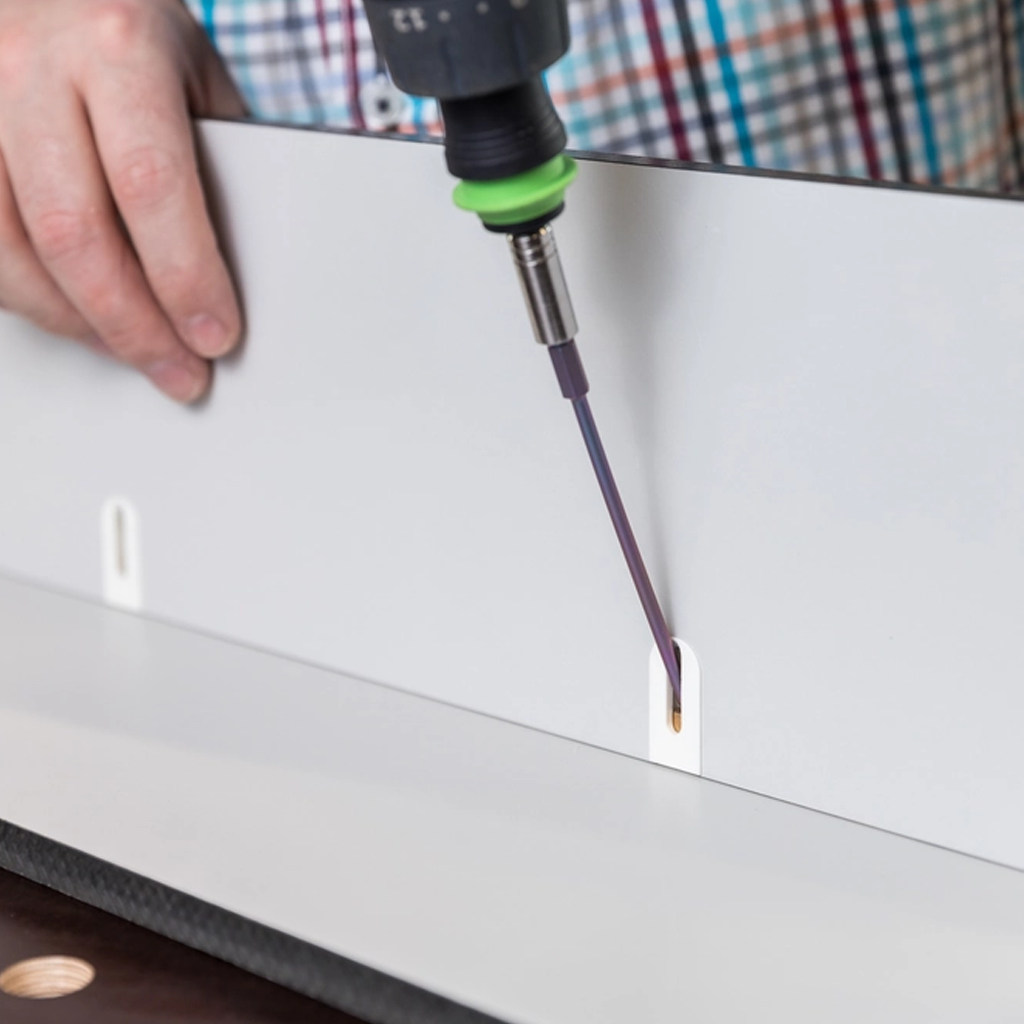

• Quick installation: the screw is pre-installed in the connector, requiring only one operation with a cordless screwdriver.
• High fastening durability: the M6 metric screw provides significant clamping force.
• Universal application: connects wood with metal, HPL, MDF, etc.
• Wear-resistant solution: ideally suited for furniture designed for multiple assemblies and disassemblies.
• No edge drilling: suitable for all CNC equipment, including simple nesting routers.
• Aesthetic solution: available in various colors for connector cover caps.

Technical Data:

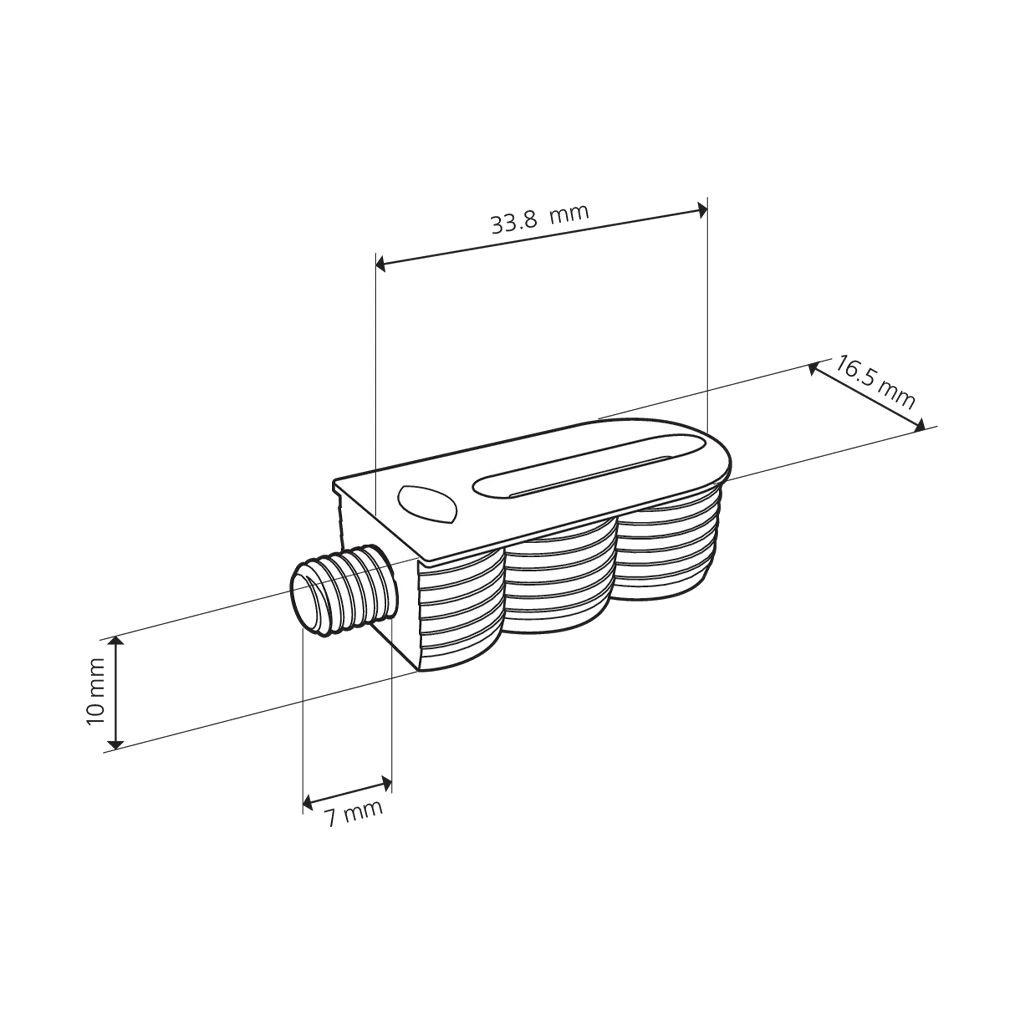

• Size: 33.8 x 10.8 x 16.5 mm

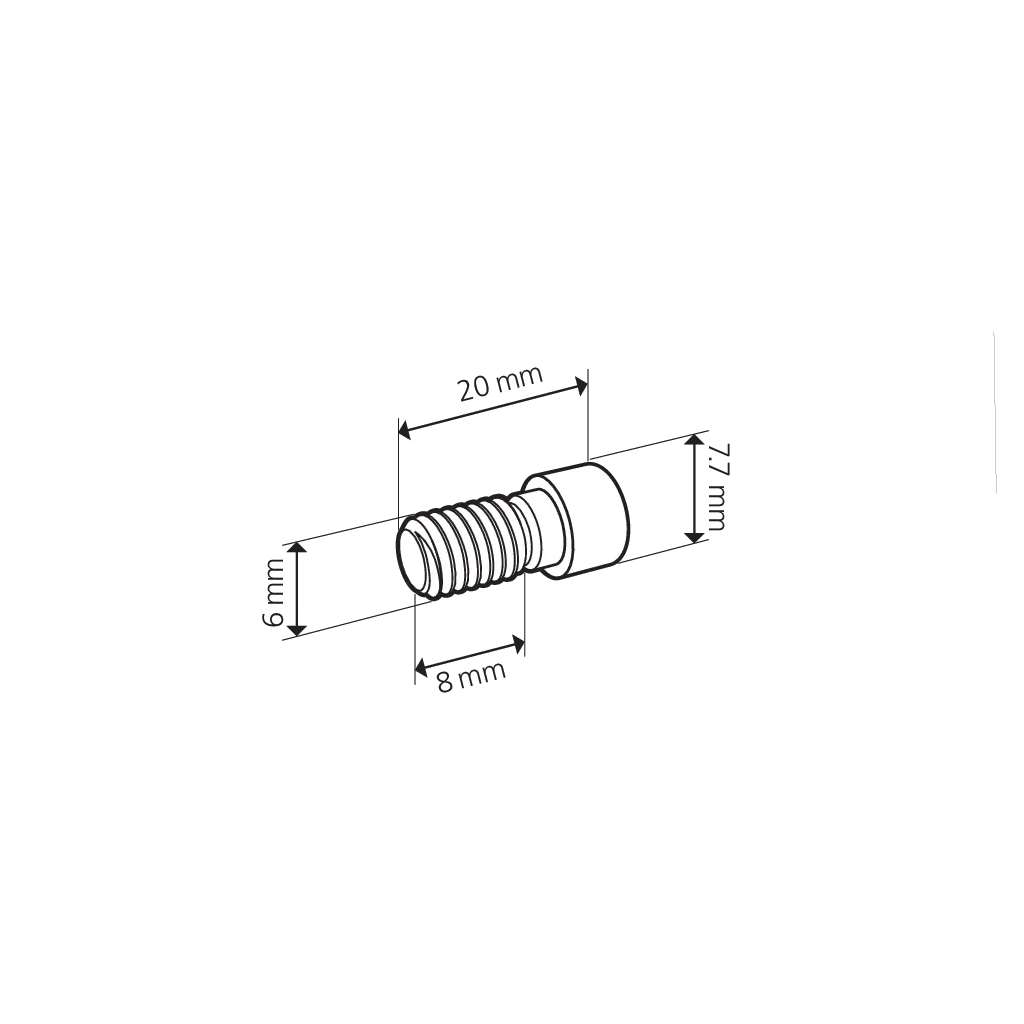

• Screw: metric M6
• Minimum part width: 21 mm
• Minimum material thickness (surface cut): 9 mm
• Installation tolerance longitudinal: ± 0.1 mm
• Installation tolerance radial: ± 0 mm
• Material combinations: wood, metal, HPL, etc.
• Installation: without separate dowels or screws – everything included in one component

Application:

• Kitchen cabinets (removable for transport)
• Open shelves with metal frames
• Built-in cabinets and wardrobes
• Commercial furniture and displays (shopfitting)
• Modular or frequently movable furniture
