Quick, simple, and secure fastening without drilling – ideal for insulated facades.

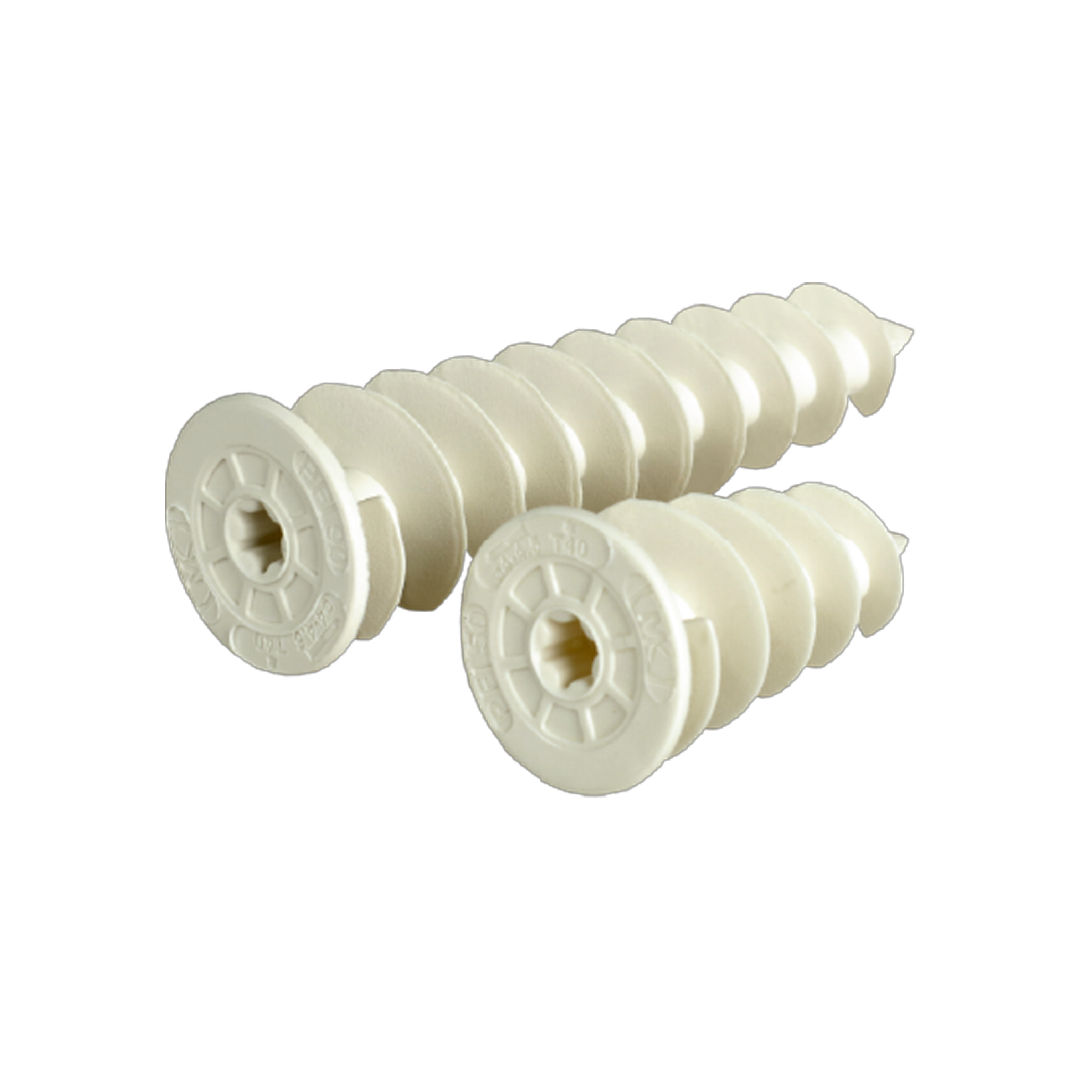

The PFI spiral anchor is designed for securing lightweight objects (such as lamps, cables, decorations, etc.) directly into thermal insulation materials, such as expanded polystyrene (EPS), polyurethane (PUR) boards, or mineral wool facades, without the need to reach the load-bearing wall structure. The specially designed spiral thread effectively penetrates the insulation, providing sufficient stability without compromising the structure of the thermal insulation.
Advantages:
- No drilling required – easily screws directly into the insulation
- Fast and easy installation – ideal for both DIY and professional use
- Compatible with various screws and hooks – flexible application
- Special spiral thread – high stability in insulation materials
- Ideal solution for insulated facades – does not damage the ETICS system
Technical Information:
- Type: Spiral plastic anchor for insulation
- Material compatibility: Expanded polystyrene (EPS/XPS), PUR, mineral wool
- Installation: Screwing without prior drilling
- Compatibility: With various screws and hooks
| CODE | MATERIAL | HEAD | DIA. | LENGTH | INNER DIA. | Dmin | Dmax |
| PFI-50 | POLYPROPYLENE | T40 | 25 mm | 50 mm | ⌀ 4.5/ ⌀ 5.0 | 35+ hef / 30+ hef | 45+ hef / 45+ hef |
| PFI-90 | POLYPROPYLENE | T40 | 25 mm | 90 mm | ⌀ 4.5/ ⌀ 5.0 | 35+ hef / 30+ hef | 80+ hef / 70+ hef |
| PFI-50N | POLYAMIDE | T40 | 25 mm | 50 mm | ⌀ 4.5/ ⌀ 5.0 | 30+ hef / 30+ hef | 45+ hef / 45+ hef |
| PFI-90N | POLYAMIDE | T40 | 25 mm | 90 mm | ⌀ 4.5/ ⌀ 5.0 | 30+ hef / 30+ hef | 80+ hef / 70+ hef |
Installation:
|
|
|
|
|
| 1) Insert the anchor into the insulation covered with plaster | 2) Screw the anchor into the insulation covered with plaster | 3) Secure the element using a screw with the recommended diameter and length | 4) The element is correctly installed in the insulation with the help of the PFI anchor |
Application:
- Installation of outdoor lamps, wires, mailboxes, and other lightweight objects
- Attachment of decorative and technical elements to insulated facades
- Suitable for both new constructions and renovations, where the facade is insulated with EPS, PUR, or wool
- Ideal complement to ETICS systems
