CE Certified Connector Nails (CNA40X35; CNA40X40; CNA40X75; CNA4.0X100; CNA40X50; CNA40X60) Simpson-Strong-Tie

Piegādes izmaksas tiek aprēķinātas norēķināšanās laikā.
Availability: Nav noliktavā
SKU: CNA
Collections:
Simpson Strong-TieAnchor Screws for Structural Connections and Steel Component Attachment to Wood CE Certified (CSA5X35; CSA5X40; CSA5X50) Simpson-Strong-Tie
Anchor Screws for Structural Connections and Steel Component Attachment to Wood CE Certified (CSA5X35; CSA5X40; CSA5X50) Simpson-Strong-Tie
Beam Shoe - External Connector (80 x 120 / 150 / 180 / 210 mm)
Simpson Strong-TieBeam Shoe - External Connector (80 x 120 / 150 / 180 / 210 mm)

Description

Specifications

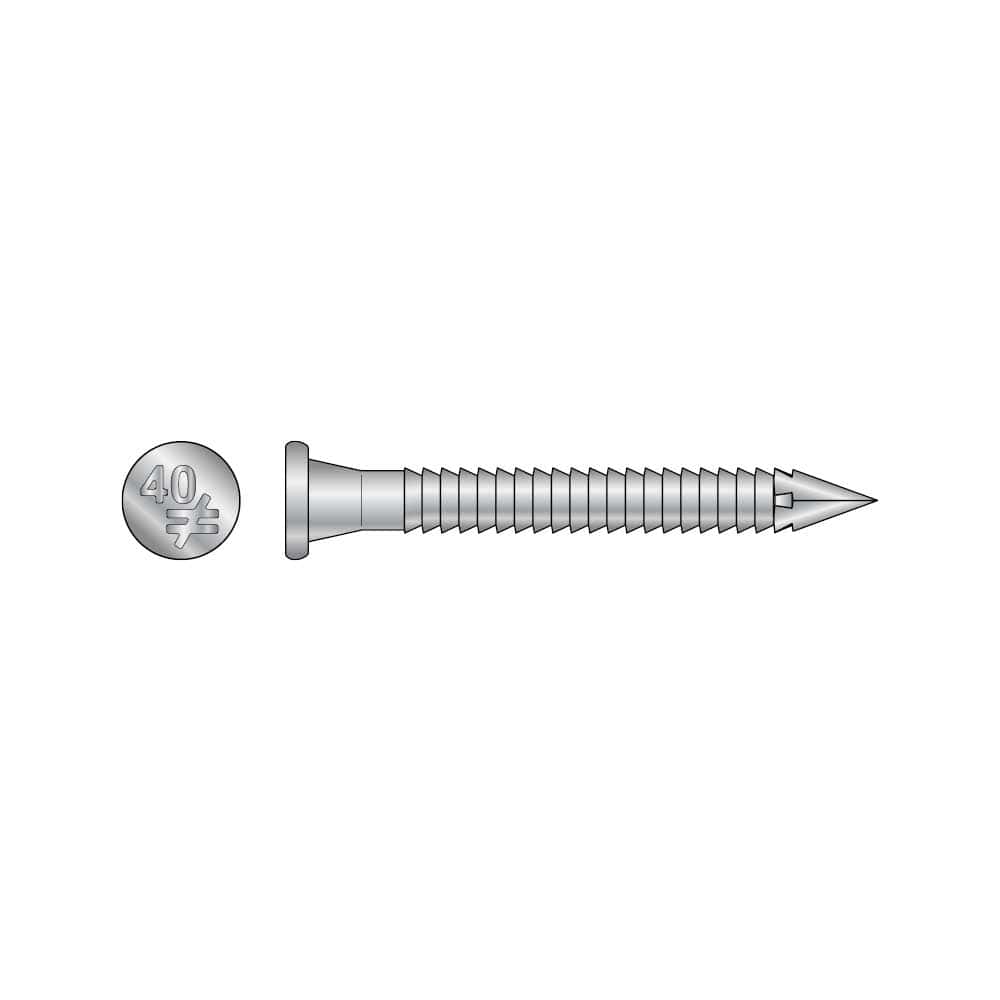

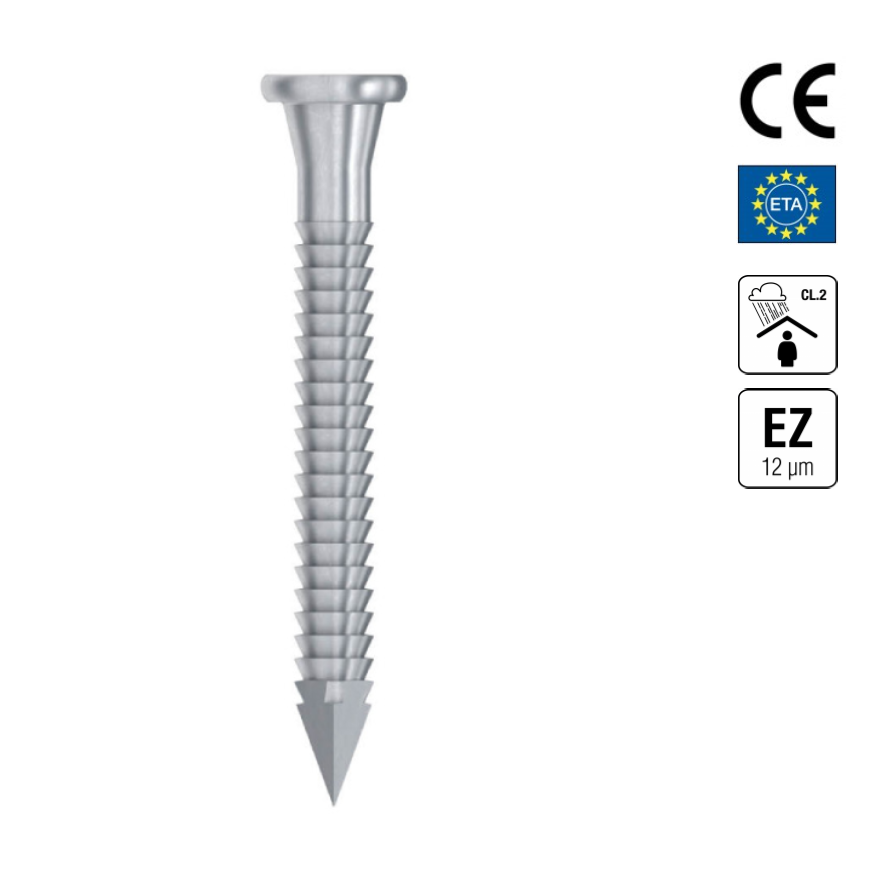

12µm galvanized steel connector nails. The CNA nails are ribbed connector nails with a tapered shape. These nails are recommended for the installation of structures and for the installation of Simpson Strong-Tie connectors, angles, and other connections to timber materials to ensure structural stability. The nails have undergone all necessary testing to be used in all construction projects requiring CE and ETA certifications.

Material:

  • Steel (Class 005 Standard EN10016) - electro-galvanized coating

Advantages:

  • CE marking in accordance with EN14592
  • ETA approved (ETA-04/0013)
  • Tapered shape
  • High withdrawal resistance - stability after fastening

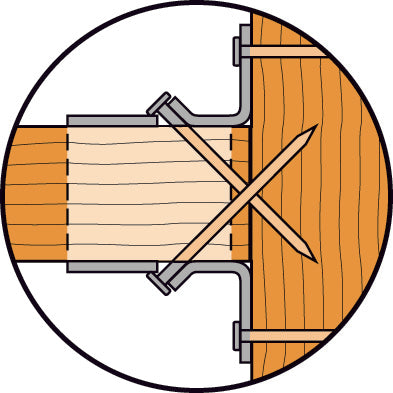

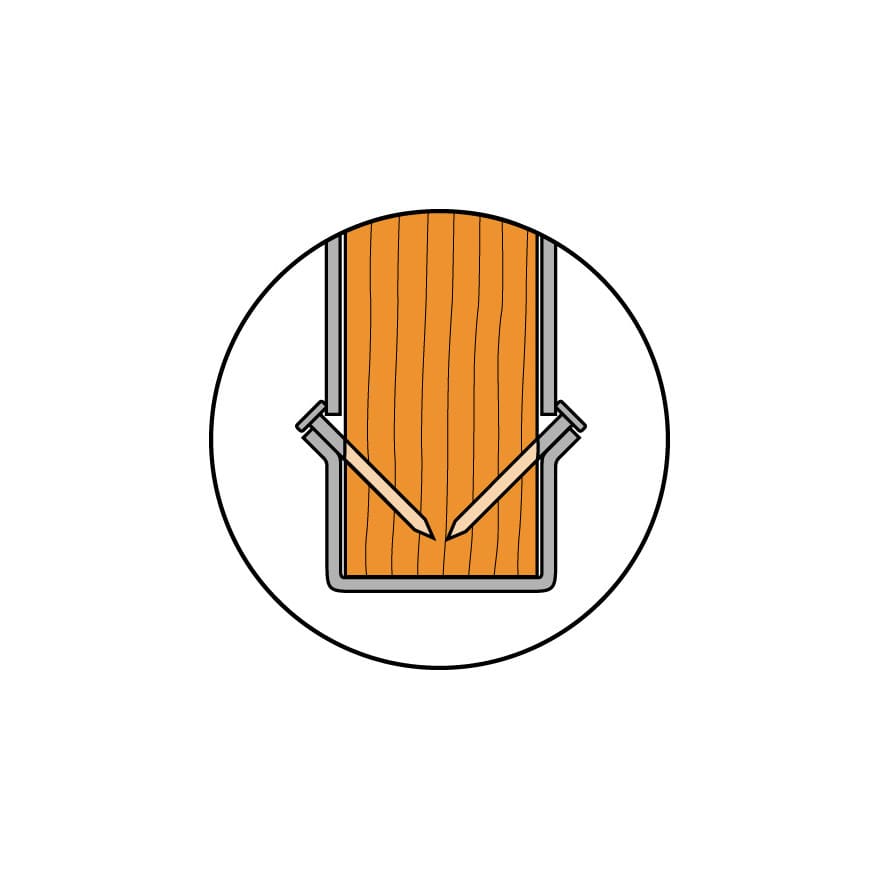

Application:

  • For fastening: solid wood, composite materials, laminated wood.


Product description and specifications on the manufacturer's website: Connector Nail - CNA | Simpson Strong-Tie (strongtie.lv)

Brand

Simpson strong-tie

Type

Anchor nails

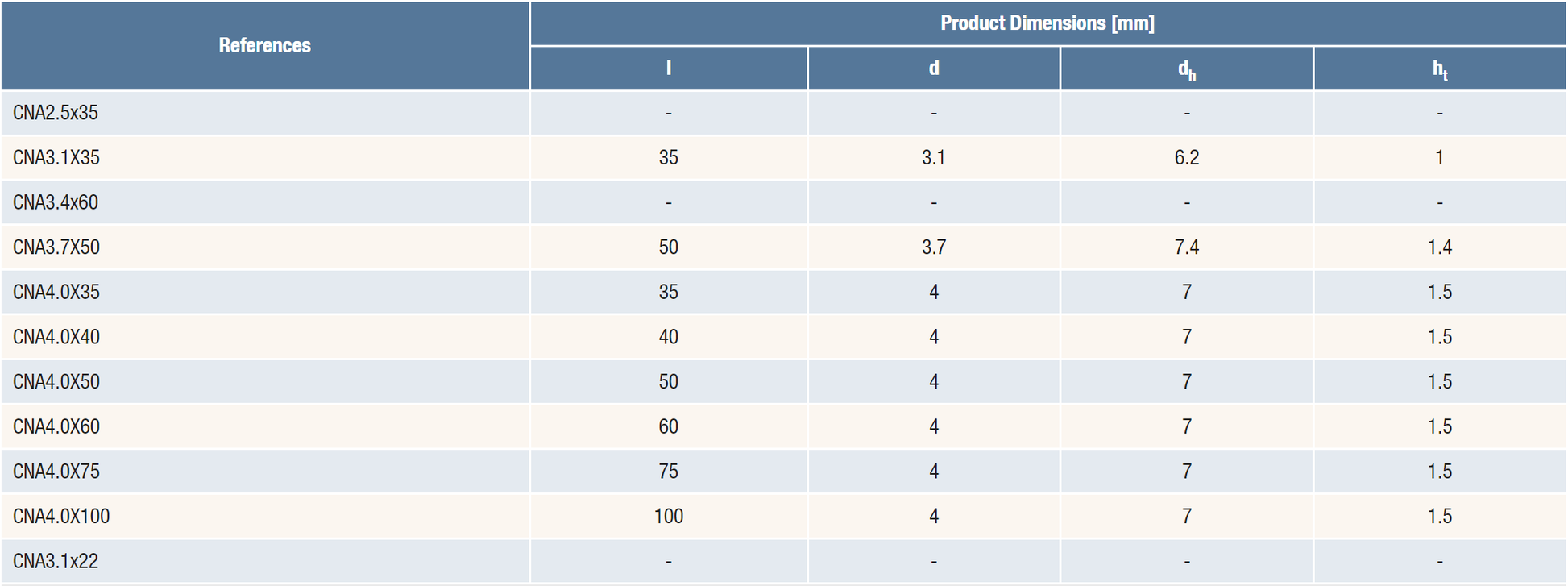

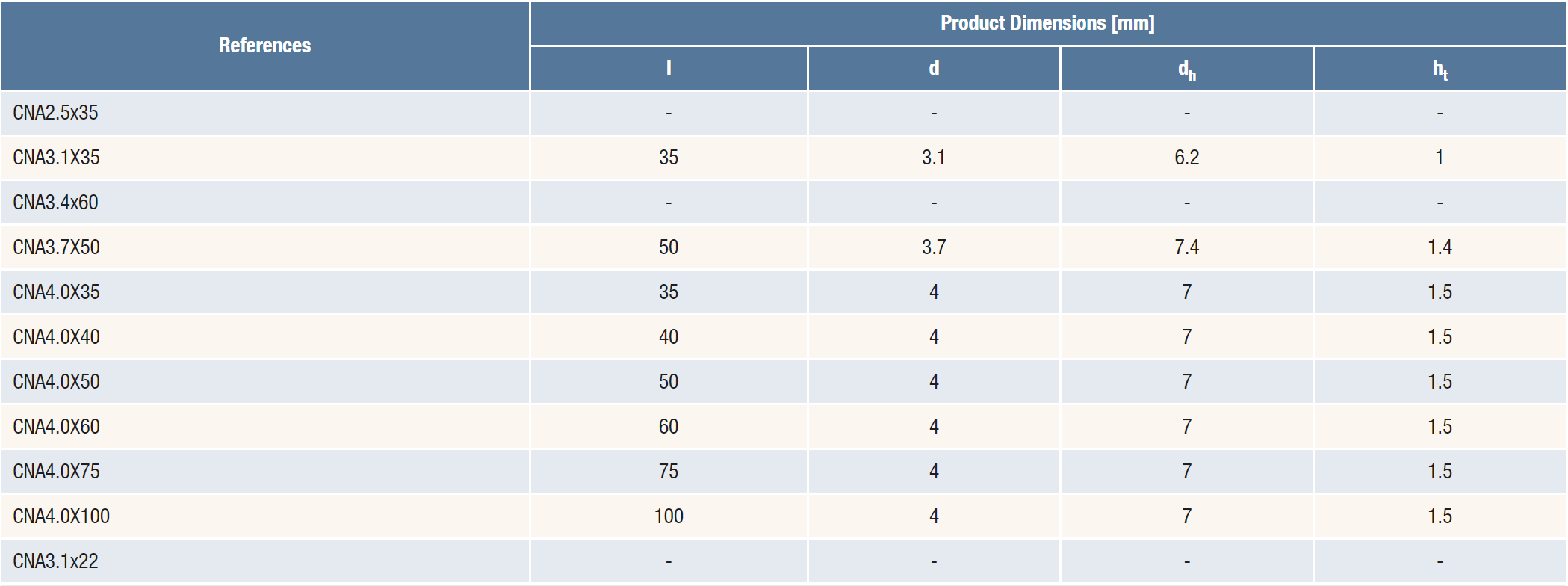

Diametrs

3.1 - 4 mm

Galvas diametrs

7 mm

Garums

35 - 100 mm

Materiāls

Elektrocinkots tērauds 12µm

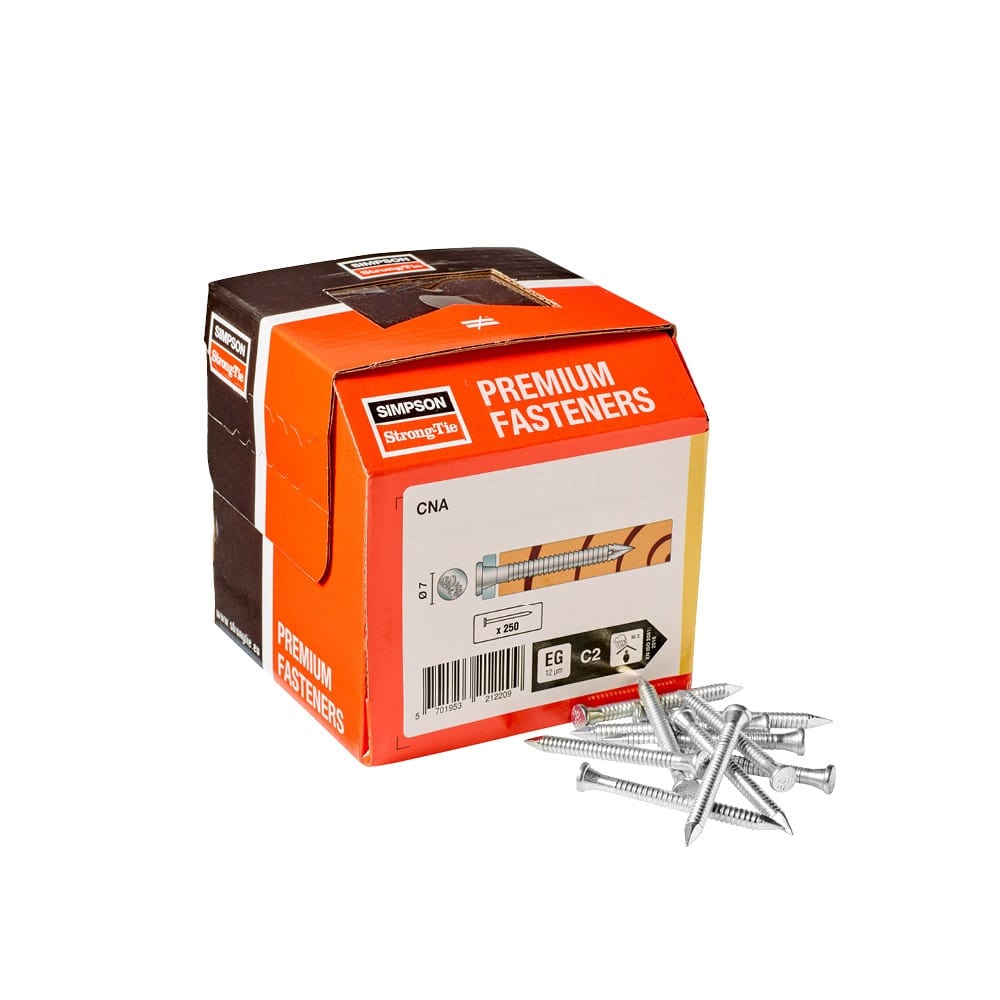

Vienības vienā kastē

250
