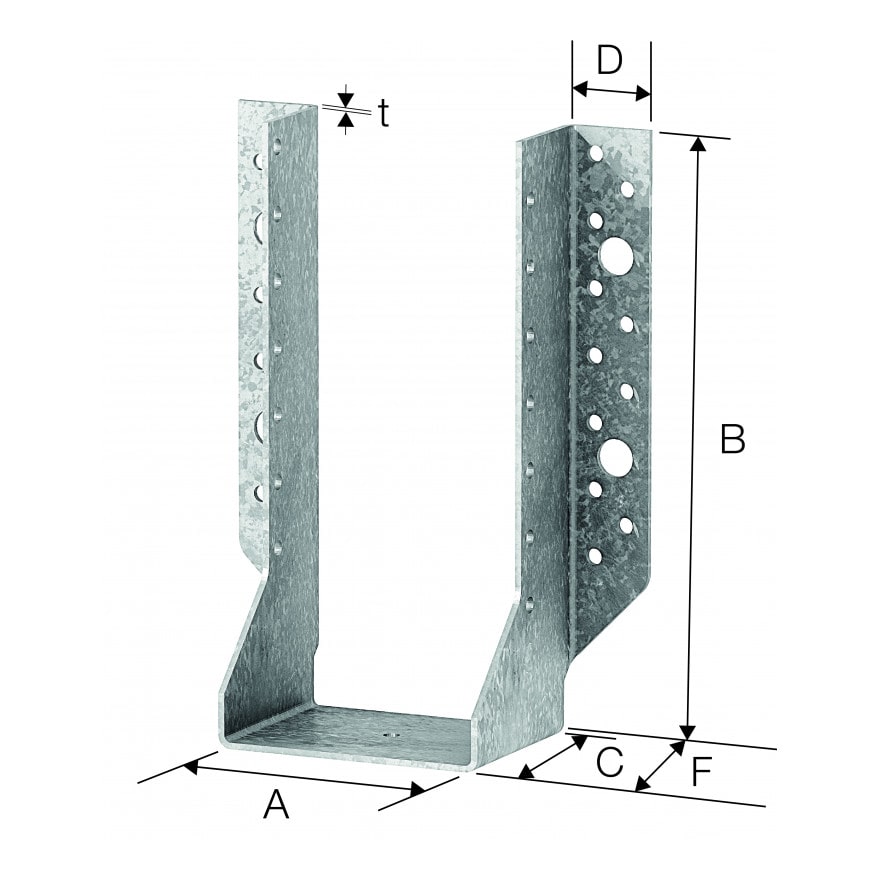

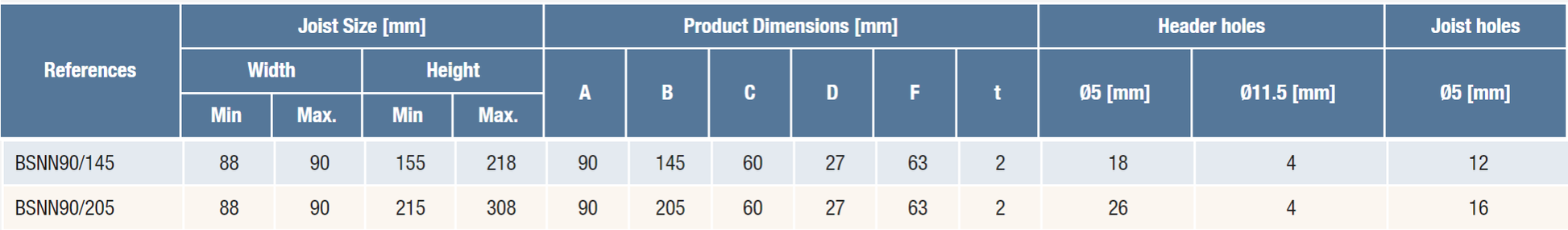

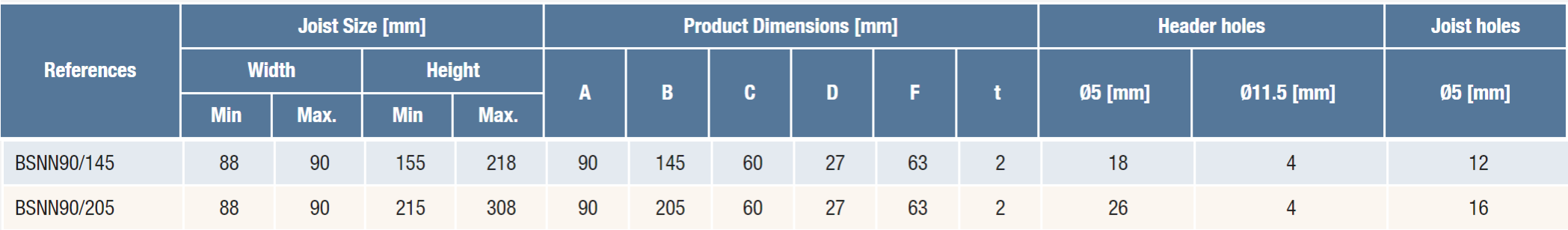

Beam Hanger - External Fastener (90 x 145 / 205 mm)

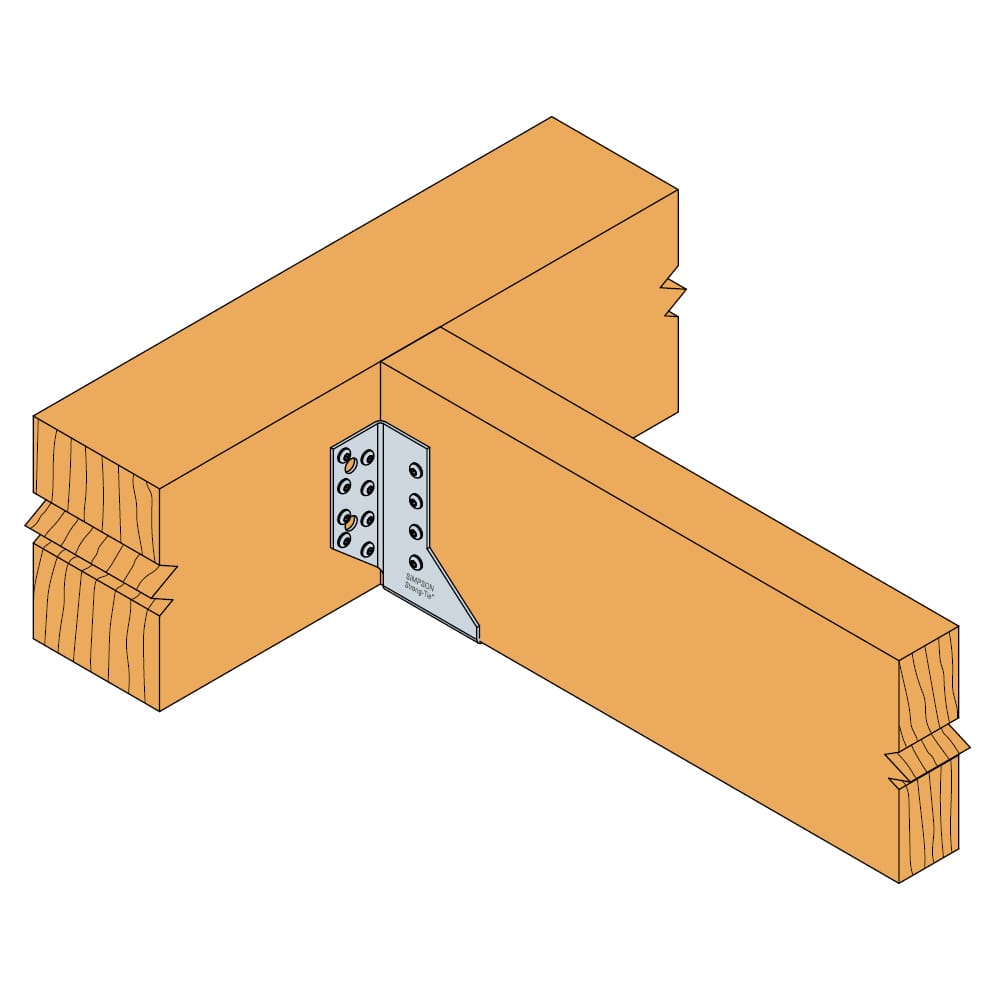

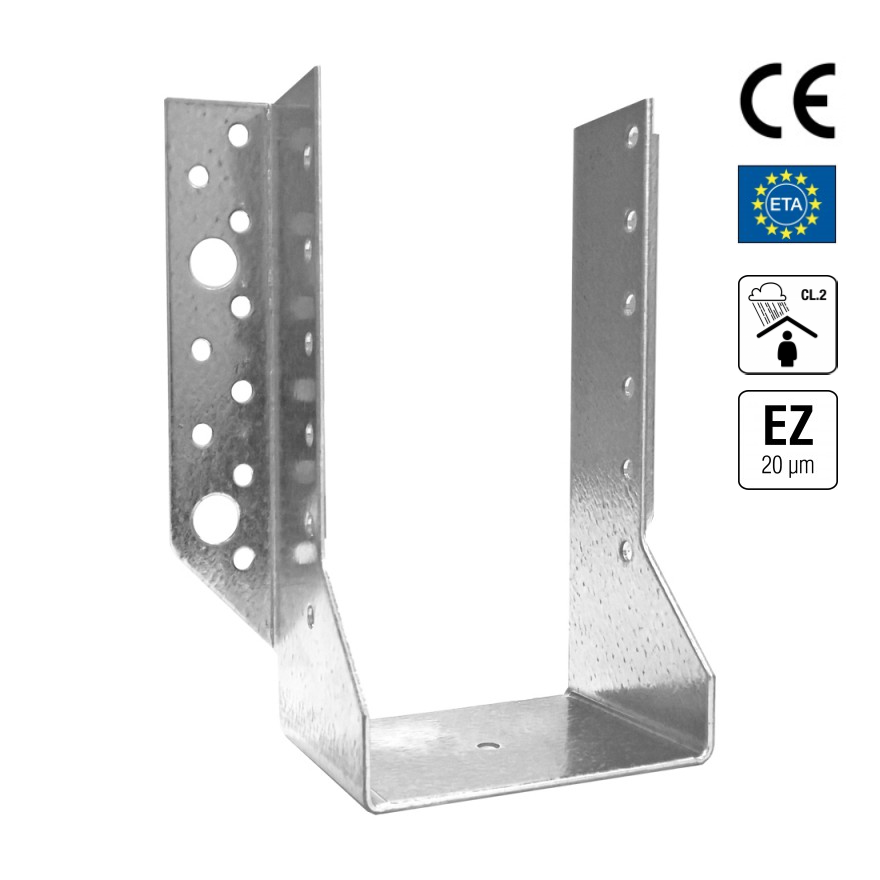

Galvanized steel 20 µm CE and ETA certified construction hardware with second service class. The BSNN series consists of robust beam hangers designed for applications requiring additional strength. BSNN beam hangers are secured using CNA nails, but they also feature 12 mm screw holes for fastenings. The depth of the beam hanger must be at least 2/3 of the height of the beam being secured to prevent rotation, unless additional reinforcement is provided at the top of the load-bearing element to restrict movement.

Material:

• Galvanized steel S250GD + Z275 according to EN 10346 (thickness: 2 mm)

Advantages:

• BSNN beam hangers are certified for three-dimensional loads.
• Connections with concrete, steel, and masonry are permitted.

Application:

• Beams
• Cladding panels, rafters
• Reinforcement of existing joints

Product description and full specifications on the manufacturer's website: Face Fix Hangers - BSNN | Simpson Strong-Tie (strongtie.lv)
