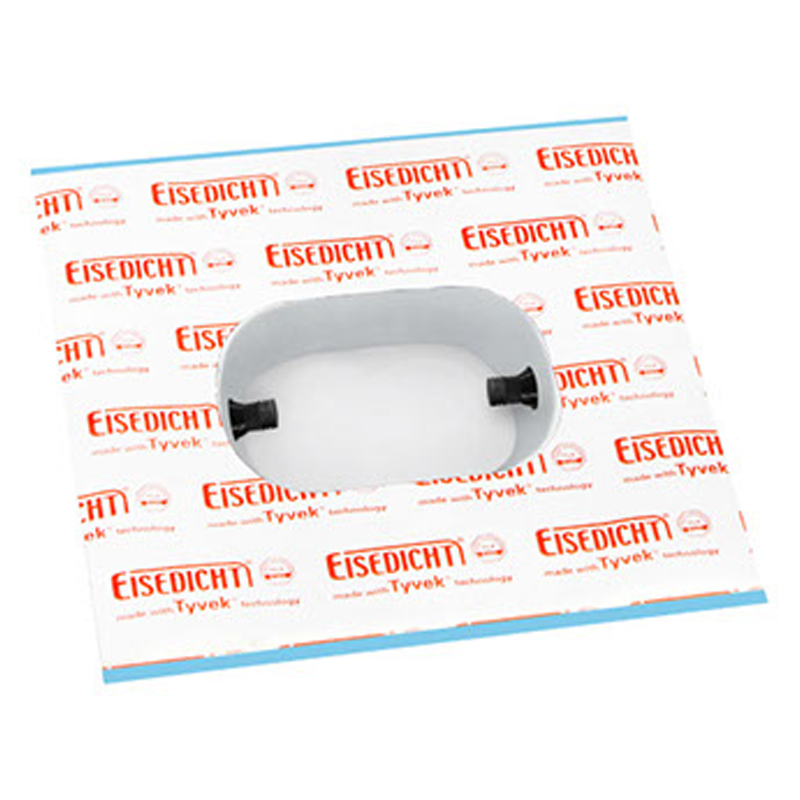

Eisedicht SocketSEAL Hermetic Socket Sealing Sleeve Ø 4-22 mm (420x320mm)

SocketSEAL 420x320 is a specialized seal that provides a reusable hermetic installation for wall-mounted socket boxes at the installation level. The large adhesive flange is installed directly onto existing vapor barriers, vapor retarders, and OSB boards.

SocketSEAL is an excellent choice for the timber frame and container construction industries, particularly for industrially manufactured buildings.

SocketSEAL enables professional craftsmen to connect and seal both individual electrical cables and empty conduits up to 22 mm in diameter.

Cable Installation:

Cables can be easily positioned through the already integrated SEALplug seals, thereby ensuring a flexible and durable hermetic seal. Installation of empty conduits: Empty conduits are installed by replacing the integrated conduit sections. SEALplug can be used for further sealing.

Advantages:

• Reusable and hermetic solution
• Suitable for sealing electrical cables and empty conduits up to 22 mm
• Ideally suited for timber frame and container constructions

Product overview on the manufacturer's website:  SocketSEAL (eisedicht.com)
